Chapter 31 — Modular Arithmetic

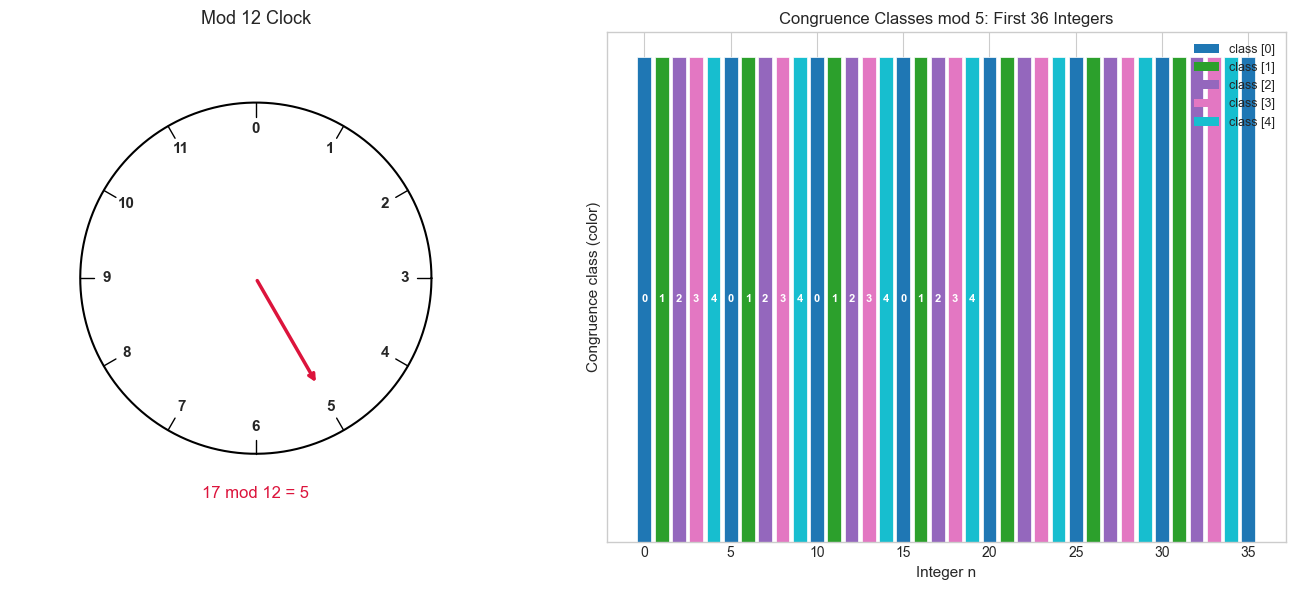

# --- Visualization: Modular arithmetic as a clock + congruence classes ---
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as patches

plt.style.use('seaborn-v0_8-whitegrid')

MODULUS = 12  # <-- try 7 or 5
N_INTEGERS = 36  # integers to display on the number line

fig, axes = plt.subplots(1, 2, figsize=(14, 6))

# --- Left: Clock face showing mod 12 ---
ax = axes[0]
theta = np.linspace(0, 2 * np.pi, 500)
ax.plot(np.cos(theta), np.sin(theta), 'k-', linewidth=1.5)

for k in range(MODULUS):
    angle = np.pi / 2 - 2 * np.pi * k / MODULUS
    x, y = 0.85 * np.cos(angle), 0.85 * np.sin(angle)
    ax.text(x, y, str(k), ha='center', va='center', fontsize=11, fontweight='bold')
    # tick
    ax.plot([0.92 * np.cos(angle), 1.0 * np.cos(angle)],
            [0.92 * np.sin(angle), 1.0 * np.sin(angle)], 'k-', linewidth=1)

# Highlight where 17 lands on a mod-12 clock
highlight = 17 % MODULUS
h_angle = np.pi / 2 - 2 * np.pi * highlight / MODULUS
ax.annotate('', xy=(0.7 * np.cos(h_angle), 0.7 * np.sin(h_angle)),
            xytext=(0, 0),
            arrowprops=dict(arrowstyle='->', color='crimson', lw=2.5))
ax.text(0, -1.25, f'17 mod {MODULUS} = {17 % MODULUS}', ha='center', fontsize=12, color='crimson')
ax.set_xlim(-1.4, 1.4)
ax.set_ylim(-1.5, 1.4)
ax.set_aspect('equal')
ax.axis('off')
ax.set_title(f'Mod {MODULUS} Clock', fontsize=13)

# --- Right: Congruence classes as colored stripes ---
ax2 = axes[1]
MOD_COLOR = 5  # <-- change modulus for color stripes
colors = plt.cm.tab10(np.linspace(0, 0.9, MOD_COLOR))

integers = np.arange(N_INTEGERS)
remainders = integers % MOD_COLOR

for i, (val, rem) in enumerate(zip(integers, remainders)):
    ax2.bar(i, 1, color=colors[rem], edgecolor='white', linewidth=0.5)
    if i < 20:
        ax2.text(i, 0.5, str(rem), ha='center', va='center', fontsize=8, color='white', fontweight='bold')

# Legend
from matplotlib.patches import Patch
legend_elements = [Patch(facecolor=colors[r], label=f'class [{r}]') for r in range(MOD_COLOR)]
ax2.legend(handles=legend_elements, loc='upper right', fontsize=9)
ax2.set_xlabel('Integer n', fontsize=11)
ax2.set_ylabel('Congruence class (color)', fontsize=11)
ax2.set_title(f'Congruence Classes mod {MOD_COLOR}: First {N_INTEGERS} Integers', fontsize=12)
ax2.set_yticks([])

plt.tight_layout()
plt.show()

# --- Implementation: Core modular arithmetic operations ---
import numpy as np

def mod_add(a, b, n):
    """
    Modular addition: (a + b) mod n.

    Args:
        a, b: integers
        n: modulus (positive integer)

    Returns:
        (a + b) % n, in range [0, n-1]
    """
    return (a + b) % n


def mod_mul(a, b, n):
    """
    Modular multiplication: (a * b) mod n.
    Python handles large integers natively, so no overflow.
    """
    return (a * b) % n


def mod_pow(base, exp, n):
    """
    Modular exponentiation: base^exp mod n.
    Uses fast repeated squaring (O(log exp) multiplications).

    Args:
        base: integer base
        exp: non-negative integer exponent
        n: modulus

    Returns:
        base^exp mod n
    """
    result = 1
    base = base % n
    while exp > 0:
        if exp % 2 == 1:          # if current bit is 1
            result = (result * base) % n
        exp //= 2                  # shift right one bit
        base = (base * base) % n   # square the base
    return result


def extended_gcd(a, b):
    """
    Extended Euclidean Algorithm.
    Returns (gcd, x, y) such that a*x + b*y = gcd(a, b).
    """
    if b == 0:
        return a, 1, 0
    gcd, x1, y1 = extended_gcd(b, a % b)
    return gcd, y1, x1 - (a // b) * y1


def mod_inverse(a, n):
    """
    Modular inverse of a modulo n.
    Returns x such that a*x ≡ 1 (mod n).
    Raises ValueError if gcd(a, n) != 1 (inverse doesn't exist).

    Args:
        a: integer
        n: modulus

    Returns:
        modular inverse in range [0, n-1]
    """
    gcd, x, _ = extended_gcd(a % n, n)
    if gcd != 1:
        raise ValueError(f"Modular inverse of {a} mod {n} does not exist: gcd={gcd}")
    return x % n  # ensure positive result


# --- Validation ---
print("=== Basic operations ===")
print(f"(17 + 8) mod 12 = {mod_add(17, 8, 12)}   (expected: 1)")
print(f"(7 * 5) mod 11  = {mod_mul(7, 5, 11)}    (expected: 2)")

print("\n=== Modular exponentiation ===")
print(f"2^10 mod 1000   = {mod_pow(2, 10, 1000)}  (expected: 24)")
print(f"3^100 mod 97    = {mod_pow(3, 100, 97)}    (verify: pow(3,100,97)={pow(3,100,97)})")

print("\n=== Modular inverse ===")
a, n = 3, 11
inv = mod_inverse(a, n)
print(f"Inverse of {a} mod {n} = {inv}")
print(f"Verification: {a} * {inv} mod {n} = {mod_mul(a, inv, n)}   (should be 1)")

print("\n=== Fermat's Little Theorem check ===")
p = 13  # prime
a = 7
print(f"a^(p-1) mod p = {a}^{p-1} mod {p} = {mod_pow(a, p-1, p)}   (should be 1 by FLT)")

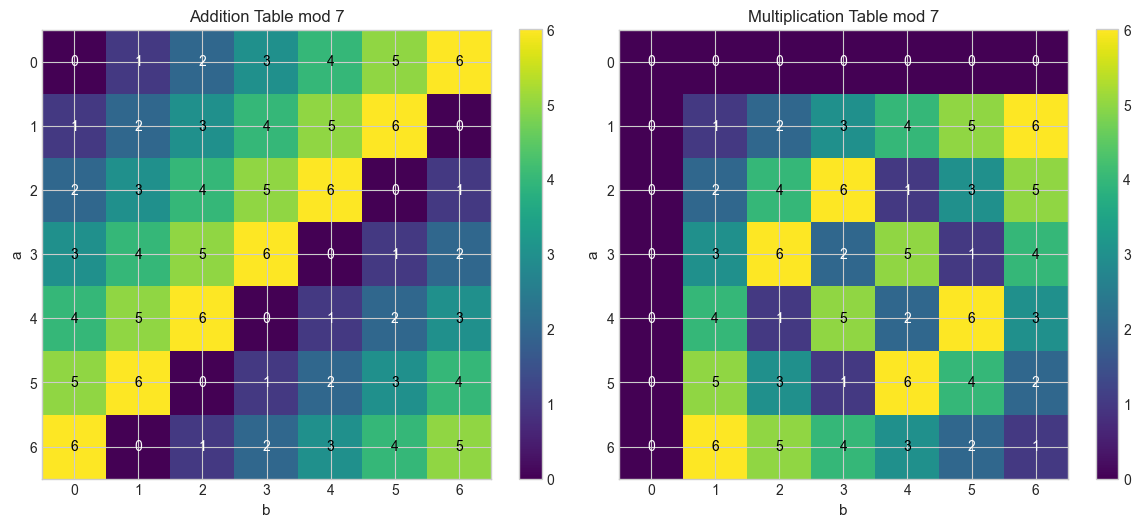

# --- Addition and multiplication tables mod n ---
import matplotlib.pyplot as plt
import numpy as np

MOD = 7  # <-- try 5, 6, 8

add_table = np.array([[(i + j) % MOD for j in range(MOD)] for i in range(MOD)])
mul_table = np.array([[(i * j) % MOD for j in range(MOD)] for i in range(MOD)])

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

for ax, table, title in zip(axes, [add_table, mul_table], ['Addition', 'Multiplication']):
    im = ax.imshow(table, cmap='viridis', aspect='equal')
    ax.set_xticks(range(MOD))
    ax.set_yticks(range(MOD))
    ax.set_xlabel('b', fontsize=11)
    ax.set_ylabel('a', fontsize=11)
    ax.set_title(f'{title} Table mod {MOD}', fontsize=12)
    for i in range(MOD):
        for j in range(MOD):
            ax.text(j, i, str(table[i, j]), ha='center', va='center',
                    fontsize=10, color='white' if table[i, j] < MOD // 2 else 'black')
    plt.colorbar(im, ax=ax)

plt.tight_layout()
plt.show()

# Notice: when MOD is prime, every nonzero element appears in every row/column
# of the multiplication table (it forms a field). Try MOD=6 to see it break.

# --- Experiment 1: When does a modular inverse exist? ---
# Hypothesis: a^(-1) mod n exists iff gcd(a, n) = 1.
#             When n is prime, every nonzero a has an inverse.
# Try changing: set n to a prime vs a composite number.

import math

n = 12  # <-- modify: try 7 (prime), 12 (composite), 15 (composite)

print(f"Modular inverses mod {n}:")
print(f"{'a':>4}  {'gcd(a,n)':>8}  {'inverse':>10}")
print("-" * 28)
for a in range(1, n):
    g = math.gcd(a, n)
    try:
        inv = mod_inverse(a, n)
        print(f"{a:>4}  {g:>8}  {inv:>10}")
    except ValueError:
        print(f"{a:>4}  {g:>8}  {'none':>10}  (gcd ≠ 1)")

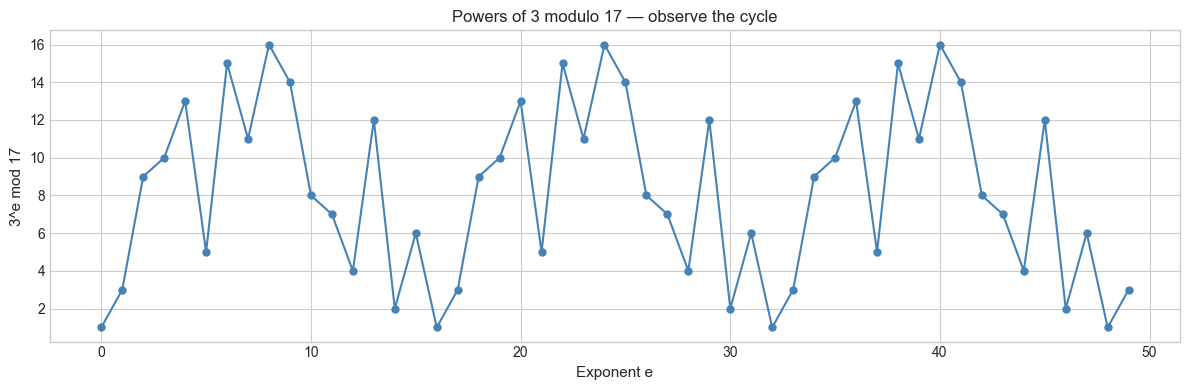

# --- Experiment 2: Modular exponentiation cycles ---
# Hypothesis: powers of a mod n form a repeating cycle.
#             The cycle length (order) divides φ(n) (Euler's totient).
# Try changing: vary BASE and MODULUS, observe the cycle length.

import matplotlib.pyplot as plt

BASE = 3    # <-- modify
MODULUS = 17  # <-- modify (try prime and composite)
MAX_EXP = 50

powers = [mod_pow(BASE, e, MODULUS) for e in range(MAX_EXP)]

plt.figure(figsize=(12, 4))
plt.plot(range(MAX_EXP), powers, 'o-', markersize=5, color='steelblue')
plt.xlabel('Exponent e', fontsize=11)
plt.ylabel(f'{BASE}^e mod {MODULUS}', fontsize=11)
plt.title(f'Powers of {BASE} modulo {MODULUS} — observe the cycle', fontsize=12)
plt.tight_layout()
plt.show()

# Find the cycle length (multiplicative order)
for period in range(1, MODULUS):
    if mod_pow(BASE, period, MODULUS) == 1:
        print(f"Multiplicative order of {BASE} mod {MODULUS} = {period}")
        break

# --- Experiment 3: Chinese Remainder Theorem (CRT) intuition ---
# Hypothesis: if m1 and m2 are coprime, the system:
#    x ≡ a1 (mod m1)
#    x ≡ a2 (mod m2)
# has a unique solution mod (m1 * m2).
# Try changing: a1, a2, m1, m2 (keep m1, m2 coprime)

import math

a1, m1 = 2, 3   # <-- modify
a2, m2 = 3, 5   # <-- modify (ensure gcd(m1, m2) = 1)

assert math.gcd(m1, m2) == 1, "m1 and m2 must be coprime!"

M = m1 * m2
# CRT construction
M1, M2 = M // m1, M // m2
x = (a1 * M1 * mod_inverse(M1, m1) + a2 * M2 * mod_inverse(M2, m2)) % M

print(f"System: x ≡ {a1} (mod {m1}),  x ≡ {a2} (mod {m2})")
print(f"Solution: x = {x} (mod {M})")
print(f"Verification: {x} mod {m1} = {x % m1} (want {a1}), {x} mod {m2} = {x % m2} (want {a2})")

# --- Mini Project: ISBN Check Digit Validator ---
# Problem: Verify ISBN-10 and ISBN-13 checksums using modular arithmetic.
# Dataset: hardcoded valid ISBNs; generate error mutations programmatically.
# Task: implement validators, then show error detection rate.

def isbn10_valid(isbn_str):
    """
    Validate ISBN-10.
    Rule: sum(d_i * (10 - i) for i in 0..9) ≡ 0 (mod 11)
    Last digit can be 'X' representing 10.

    Args:
        isbn_str: string of 10 characters (digits or trailing 'X')

    Returns:
        True if valid
    """
    isbn = isbn_str.replace('-', '').replace(' ', '')
    if len(isbn) != 10:
        return False
    # TODO: complete this function
    total = 0
    for i, ch in enumerate(isbn):
        if ch == 'X' and i == 9:
            digit = 10
        elif ch.isdigit():
            digit = int(ch)
        else:
            return False
        total += digit * (10 - i)
    return total % 11 == 0


def isbn13_valid(isbn_str):
    """
    Validate ISBN-13.
    Rule: sum(d_i * (1 if i even else 3) for i in 0..12) ≡ 0 (mod 10)

    Args:
        isbn_str: string of 13 digits

    Returns:
        True if valid
    """
    isbn = isbn_str.replace('-', '').replace(' ', '')
    if len(isbn) != 13 or not isbn.isdigit():
        return False
    # TODO: implement the weighted sum and mod-10 check
    weights = [1 if i % 2 == 0 else 3 for i in range(13)]
    total = sum(int(d) * w for d, w in zip(isbn, weights))
    return total % 10 == 0


def generate_single_digit_errors(isbn_str):
    """
    Generate all ISBN strings that differ from isbn_str in exactly one digit.
    Returns list of (position, mutated_isbn) pairs.
    """
    isbn = isbn_str.replace('-', '')
    errors = []
    for i, ch in enumerate(isbn):
        if ch.isdigit():
            original = int(ch)
            for d in range(10):
                if d != original:
                    mutated = isbn[:i] + str(d) + isbn[i+1:]
                    errors.append((i, mutated))
    return errors


# Test with known valid ISBNs
valid_isbn10 = "0306406152"   # Valid ISBN-10
valid_isbn13 = "9780306406157"  # Valid ISBN-13

print(f"ISBN-10 '{valid_isbn10}' valid: {isbn10_valid(valid_isbn10)}")
print(f"ISBN-13 '{valid_isbn13}' valid: {isbn13_valid(valid_isbn13)}")

# Error detection analysis
errors = generate_single_digit_errors(valid_isbn13)
false_positives = [(pos, m) for pos, m in errors if isbn13_valid(m)]
print(f"\nISBN-13 error detection:")
print(f"  Total single-digit mutations: {len(errors)}")
print(f"  Detected as invalid: {len(errors) - len(false_positives)}")
print(f"  Missed (false positives): {len(false_positives)}")
print(f"  Detection rate: {(len(errors) - len(false_positives)) / len(errors) * 100:.1f}%")
