Chapters 91–120¶
Prerequisites: Parts I–III. You need: coordinate systems (ch098), functions (ch051), trigonometry (ch101–104), Python + numpy + matplotlib.
You will build: a 2D geometry visualizer (ch119), a physics motion simulator (ch120), and a deep toolkit for spatial reasoning in 2D and 3D.
What This Part Covers¶
Part III gave you functions — rules that map inputs to outputs. Part IV gives you space — the geometric stage where functions act.
You will learn to work with:
Points, lines, distances, and angles in 2D and 3D
Trigonometry as the language of angles and periodic motion
Geometric transformations: rotation, scaling, reflection, translation
Curves beyond functions: circles, spirals, Bézier curves, splines
The mathematical foundations of computer graphics
The central theme: geometry is linear algebra in disguise. Every transformation in this Part is a matrix operation — a preview of Part VI.
The Mental Shift¶
In Parts I–III you thought about functions:
“What is the output when the input is x?”
In Part IV you think about geometry:
“Where is this point in space? How does it move? What shape does it trace?”
Numbers become coordinates. Functions become transformations. Outputs become positions.
A key realization: all geometric operations are linear maps. Rotating a point 30°, scaling it by 2, reflecting it across a line — each is a matrix multiplication. You will see this machinery in Part VI (Linear Algebra), but you will build the intuition here.
The other shift: from exact functions to parametric descriptions. Instead of y = f(x), you write:
x(t) = cos(t)
y(t) = sin(t)
This traces a circle — something that is not a function (it fails the vertical line test), but is perfectly describable parametrically. Parametric thinking opens up all of curve geometry.
Part Map: What Connects to What¶
ch091 Geometry in Programming
ch092 Points and Coordinate Systems
ch093 Cartesian Coordinates
ch094 Distance Between Points ──────────────────────┐
ch095 Midpoints and Interpolation │
ch096 Slopes and Lines │
ch097 Line Equations │ Euclidean Geometry
ch098 Intersections │ (the plane)
ch099 Circles and Geometry ─────────────────────────┘
ch100 Angle Measurement
ch101 Trigonometry Intuition ───────────────────────┐
ch102 Sine and Cosine │
ch103 Unit Circle │ Trigonometry
ch104 Wave Functions │ (angles and cycles)
ch105 Periodic Motion ──────────────────────────────┘
ch106 Polar Coordinates ────────────────────────────┐
ch107 Parametric Curves │ Beyond Cartesian
ch108 Geometric Transformations │
ch109 Rotation ─────────────────────────────────────┘
ch110 Scaling
ch111 Reflection
ch112 Translation ──────────────────────────────────┐
ch113 Geometric Composition │ Transformations
ch114 Affine Transformations │ (the algebra of geometry)
ch115 Computer Graphics Basics ─────────────────────┘
ch116 Bézier Curves ────────────────────────────────┐
ch117 Interpolation and Splines │ Curves
ch118 Geometry in Game Development ─────────────────┘
ch119 Project: 2D Geometry Visualizer
ch120 Project: Physics Motion SimulatorThe geometric toolkit culminates in ch114 (Affine Transformations) — the single framework that unifies rotation, scaling, reflection, and translation into one matrix formula.
Prerequisites from Prior Parts¶
From Part II (Numbers):
Floating-point arithmetic (ch018) — coordinates are floats; precision matters
Modular arithmetic (ch011) — angle wrapping uses modulo
From Part III (Functions):
Function composition (ch054) — geometric transformations compose the same way
Parametric thinking (ch067–068) — x(t), y(t) is a function applied to a parameter
Function transformations (ch066) — spatial transformations are the same idea in 2D
Motivating Problem: Can You Solve This Now?¶
Here is a problem you cannot yet solve efficiently. By ch114, it will be trivial.
Problem: You have a polygon with 5 vertices. Apply the following sequence:
Rotate 45° around the origin
Scale by 2 along the x-axis
Translate by (3, -1)
Reflect across y = x
Plot the original and transformed polygon.
# Motivating problem — this will fail or be clumsy without Part IV tools
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
# Pentagon vertices
theta = np.linspace(0, 2*np.pi, 6)[:-1]
polygon = np.column_stack([np.cos(theta), np.sin(theta)])
# YOU CANNOT YET DO THIS CLEANLY.
# Attempt: manually apply each transformation
def rotate(pts, angle_deg):
a = np.radians(angle_deg)
R = np.array([[np.cos(a), -np.sin(a)],
[np.sin(a), np.cos(a)]])
return pts @ R.T
# After Part IV, you will apply all 4 transforms in ONE matrix multiplication
# using homogeneous coordinates (ch114)
rotated = rotate(polygon, 45)
fig, ax = plt.subplots(figsize=(8, 6))
poly = np.vstack([polygon, polygon[0]])
rot = np.vstack([rotated, rotated[0]])
ax.fill(poly[:,0], poly[:,1], alpha=0.2, color='steelblue')
ax.plot(poly[:,0], poly[:,1], 'steelblue', linewidth=2, label='Original')
ax.fill(rot[:,0], rot[:,1], alpha=0.2, color='crimson')
ax.plot(rot[:,0], rot[:,1], 'crimson', linewidth=2, label='After rotation only')
ax.set_aspect('equal')

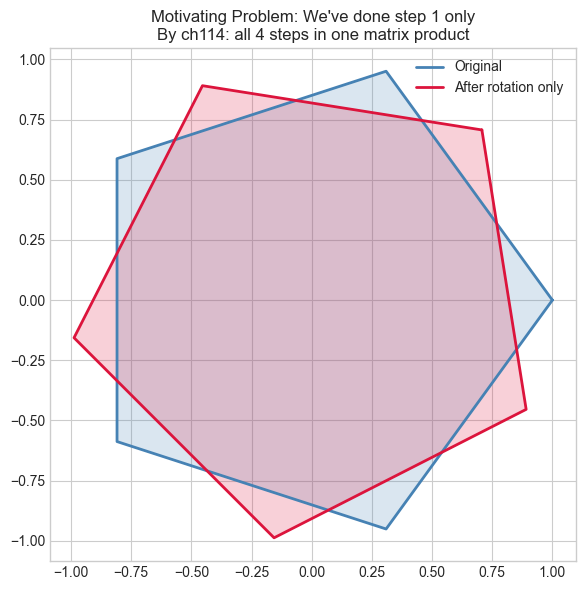

ax.set_title("Motivating Problem: We've done step 1 only\nBy ch114: all 4 steps in one matrix product")
ax.legend(); plt.tight_layout(); plt.show()
print("By end of Part IV:")
print(" transformation = T_reflect @ T_translate @ T_scale @ T_rotate")
print(" result = polygon @ transformation.T")
print(" — one line of code for the full sequence")
By end of Part IV:
transformation = T_reflect @ T_translate @ T_scale @ T_rotate
result = polygon @ transformation.T
— one line of code for the full sequence
Part IV in Three Sentences¶
Geometry is the study of where things are and how they move. Every movement — rotate, scale, flip, slide — is a matrix multiplication (you’ll prove this in ch114). Trigonometry is the bridge between angles and coordinates that makes all spatial computation possible.
Start here: ch091 — Geometry in Programming.
