Chapter 35 — Fractions Visualization

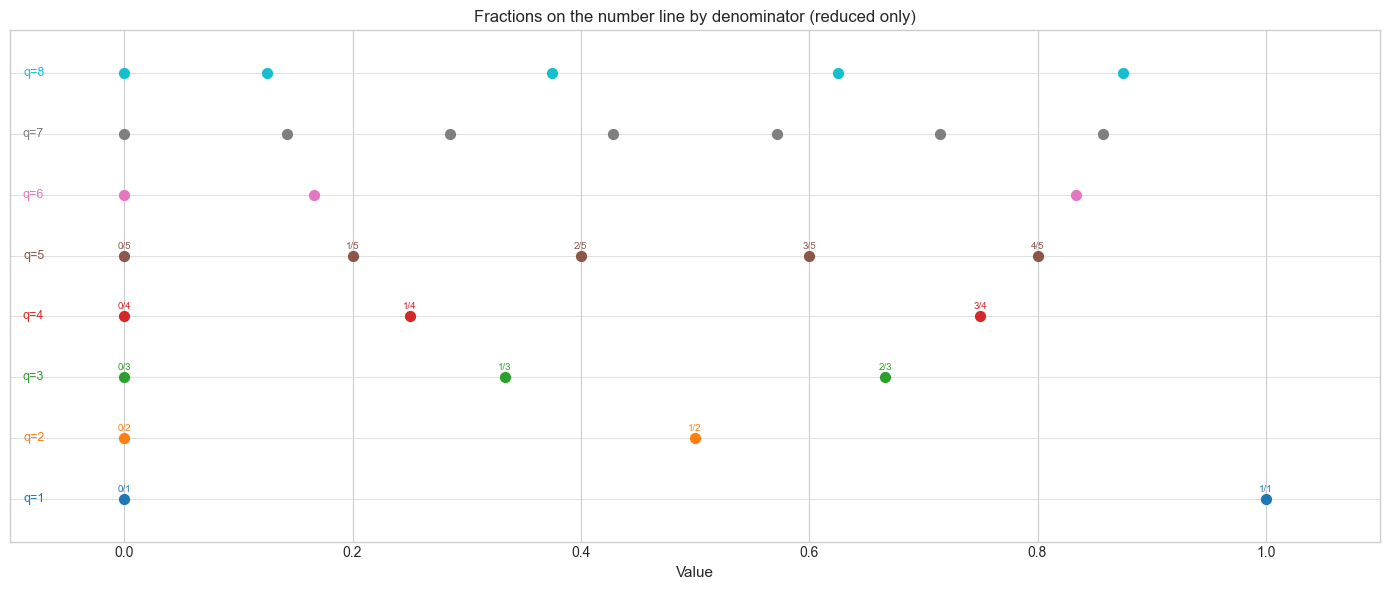

# --- Visualization 1: Fractions on a number line (multiple denominators) ---
import numpy as np
import matplotlib.pyplot as plt
import math

plt.style.use('seaborn-v0_8-whitegrid')

MAX_DENOM = 8   # <-- try 6, 10, 12

fig, ax = plt.subplots(figsize=(14, 6))

colors = plt.cm.tab10(np.linspace(0, 0.9, MAX_DENOM))

for q in range(1, MAX_DENOM + 1):
    y = q  # row position
    ax.axhline(y, color='lightgray', linewidth=0.5)
    for p in range(0, q + 1):
        x = p / q
        # Only show reduced fractions to avoid clutter
        if math.gcd(p, q) == 1 or p == 0:
            ax.scatter(x, y, color=colors[q-1], s=50, zorder=3)
            if q <= 5:  # label only small denominators
                ax.annotate(f'{p}/{q}', (x, y),
                            textcoords='offset points', xytext=(0, 5),
                            ha='center', fontsize=7, color=colors[q-1])
    ax.text(-0.07, y, f'q={q}', ha='right', va='center', fontsize=9, color=colors[q-1])

ax.set_xlim(-0.1, 1.1)
ax.set_ylim(0.3, MAX_DENOM + 0.7)
ax.set_xlabel('Value', fontsize=11)
ax.set_yticks([])
ax.set_title(f'Fractions on the number line by denominator (reduced only)', fontsize=12)
plt.tight_layout()
plt.show()

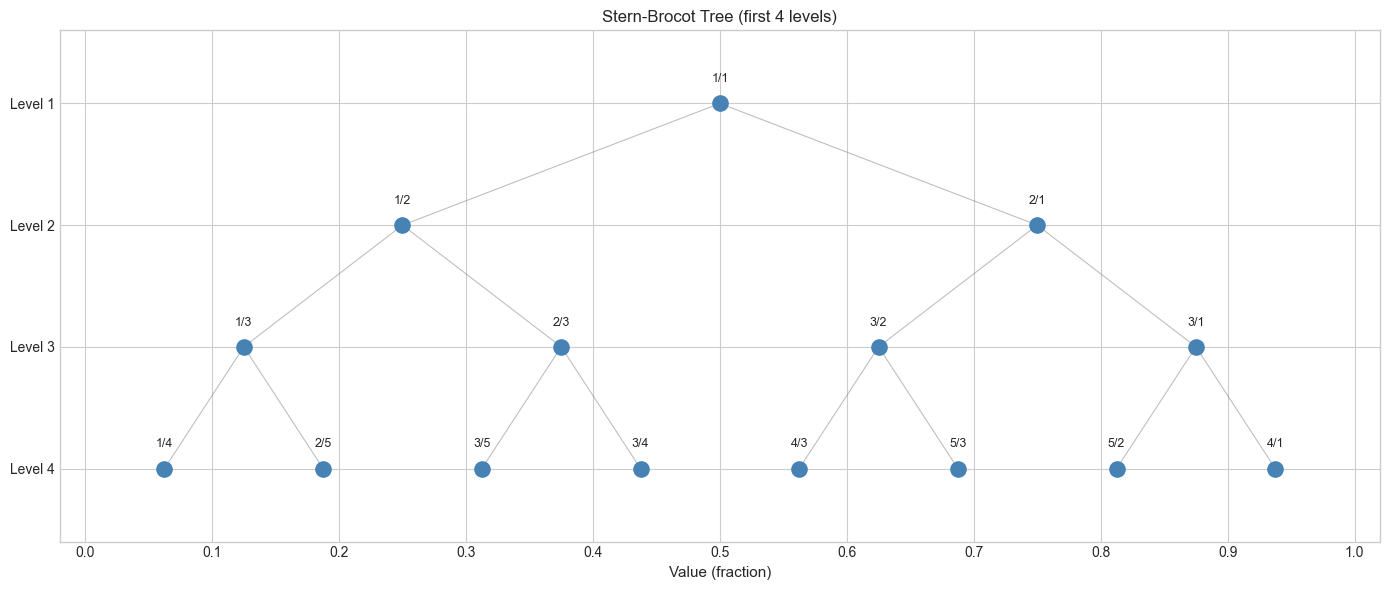

# --- Visualization 2: Stern-Brocot tree (first 4 levels) ---
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches

def stern_brocot_levels(n_levels):
    """
    Generate Stern-Brocot tree nodes by level.
    Returns list of levels, each level is list of (p, q) fractions.
    Uses mediant insertion between left and right bounds.
    """
    # Each node is (p, q) = mediant, with (lp, lq) left bound, (rp, rq) right bound
    # Represent as (p, q, lp, lq, rp, rq)
    tree = []
    # Level 0: just 1/1
    root = (1, 1, 0, 1, 1, 0)  # mediant of 0/1 and 1/0
    current_level = [root]
    tree.append(current_level)

    for _ in range(n_levels - 1):
        next_level = []
        for (p, q, lp, lq, rp, rq) in current_level:
            # Left child: mediant of left-bound and this node
            left_child  = (lp + p, lq + q, lp, lq, p, q)
            # Right child: mediant of this node and right-bound
            right_child = (rp + p, rq + q, p, q, rp, rq)
            next_level.extend([left_child, right_child])
        tree.append(next_level)
        current_level = next_level

    return tree


N_LEVELS = 4
tree = stern_brocot_levels(N_LEVELS)

fig, ax = plt.subplots(figsize=(14, 6))

node_positions = {}  # (p, q) -> (x, y)

for level_idx, level in enumerate(tree):
    y = N_LEVELS - level_idx
    n = len(level)
    for i, (p, q, *_) in enumerate(level):
        x = (i + 0.5) / n  # uniform spacing within level
        node_positions[(p, q, level_idx, i)] = (x, y)
        ax.scatter(x, y, color='steelblue', s=120, zorder=3)
        ax.text(x, y + 0.15, f'{p}/{q}', ha='center', va='bottom', fontsize=9)

# Draw edges: parent to children
for level_idx in range(len(tree) - 1):
    parent_level = tree[level_idx]
    child_level  = tree[level_idx + 1]
    y_parent = N_LEVELS - level_idx
    y_child  = N_LEVELS - level_idx - 1

    for pi, parent in enumerate(parent_level):
        x_parent = (pi + 0.5) / len(parent_level)
        # Two children: left at 2*pi, right at 2*pi+1
        for ci in [2 * pi, 2 * pi + 1]:
            x_child = (ci + 0.5) / len(child_level)
            ax.plot([x_parent, x_child], [y_parent, y_child],
                    'gray', linewidth=0.8, alpha=0.5)

ax.set_xlim(-0.02, 1.02)
ax.set_ylim(0.4, N_LEVELS + 0.6)
ax.set_yticks(range(1, N_LEVELS + 1))
ax.set_yticklabels([f'Level {N_LEVELS - i}' for i in range(N_LEVELS)])
ax.set_xlabel('Value (fraction)', fontsize=11)
ax.set_title('Stern-Brocot Tree (first 4 levels)', fontsize=12)
ax.set_xticks(np.linspace(0, 1, 11))
ax.set_xticklabels([f'{i/10:.1f}' for i in range(11)])
plt.tight_layout()
plt.show()

# --- Implementation: Stern-Brocot search and Farey sequences ---
import math

def stern_brocot_search(target_p, target_q, max_steps=100):
    """
    Find path to fraction target_p/target_q in the Stern-Brocot tree.
    Returns list of 'L' (left) and 'R' (right) moves.

    Args:
        target_p, target_q: numerator and denominator (must be coprime)
        max_steps: safety limit

    Returns:
        (path as string, number of steps)
    """
    assert math.gcd(target_p, target_q) == 1, "Fraction must be in lowest terms"
    lp, lq = 0, 1   # left bound: 0/1
    rp, rq = 1, 0   # right bound: 1/0
    path = []

    for _ in range(max_steps):
        mp, mq = lp + rp, lq + rq  # mediant
        if mp == target_p and mq == target_q:
            return ''.join(path), len(path)
        elif target_p * mq < mp * target_q:  # target < mediant (cross-multiply)
            rp, rq = mp, mq
            path.append('L')
        else:
            lp, lq = mp, mq
            path.append('R')

    return None, max_steps  # not found within limit


def farey_sequence(n):
    """
    Generate Farey sequence F_n: all fractions p/q in [0,1] with q <= n, in order.

    Uses the recurrence: if a/b and c/d are adjacent in F_n, the next term
    after c/d is ((floor((b+n)/d)*c - a) / (floor((b+n)/d)*d - b))

    Args:
        n: maximum denominator

    Returns:
        list of (p, q) tuples
    """
    a, b = 0, 1  # start: 0/1
    c, d = 1, n  # second element
    sequence = [(a, b)]
    while c <= n:
        sequence.append((c, d))
        k = (n + b) // d
        a, b, c, d = c, d, k * c - a, k * d - b
    return sequence


def verify_farey_adjacency(seq):
    """Check that all adjacent pairs (a/b, c/d) satisfy bc - ad = 1."""
    violations = []
    for i in range(len(seq) - 1):
        a, b = seq[i]
        c, d = seq[i + 1]
        det = c * b - a * d
        if det != 1:
            violations.append((i, a, b, c, d, det))
    return violations


# Test Stern-Brocot search
test_fractions = [(1, 2), (3, 5), (7, 11), (355, 113), (1, 1)]
print("Stern-Brocot paths:")
for p, q in test_fractions:
    path, steps = stern_brocot_search(p, q)
    print(f"  {p}/{q}: path='{path}', depth={steps}")

# Farey sequence
F7 = farey_sequence(7)
print(f"\nFarey sequence F_7 ({len(F7)} terms):")
print([f"{p}/{q}" for p, q in F7])

violations = verify_farey_adjacency(F7)
print(f"\nAdjacency property (bc - ad = 1) violations: {len(violations)} (should be 0)")

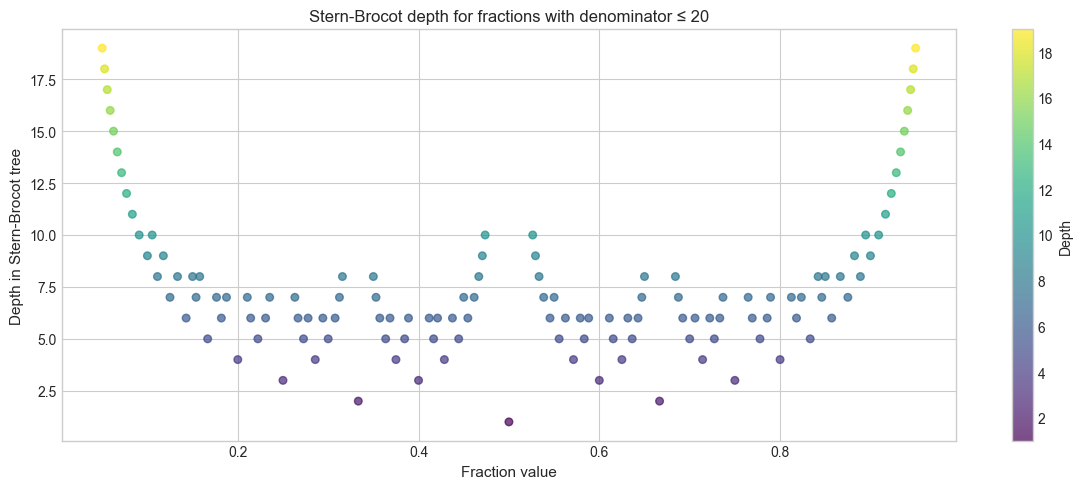

# --- Experiment 1: Depth of fractions in the Stern-Brocot tree ---
# Hypothesis: fractions with smaller denominators appear closer to the root.
#             The depth of p/q is related to the continued fraction representation of p/q.
# Try changing: the set of fractions tested.

import matplotlib.pyplot as plt

MAX_Q = 20  # test all reduced fractions with denominator up to MAX_Q

fracs = []
depths = []
values = []

for q in range(1, MAX_Q + 1):
    for p in range(1, q):
        if math.gcd(p, q) == 1:
            _, depth = stern_brocot_search(p, q)
            fracs.append((p, q))
            depths.append(depth)
            values.append(p / q)

plt.figure(figsize=(12, 5))
scatter = plt.scatter(values, depths, c=depths, cmap='viridis', s=30, alpha=0.7)
plt.colorbar(scatter, label='Depth')
plt.xlabel('Fraction value', fontsize=11)
plt.ylabel('Depth in Stern-Brocot tree', fontsize=11)
plt.title(f'Stern-Brocot depth for fractions with denominator ≤ {MAX_Q}', fontsize=12)
plt.tight_layout()
plt.show()

# Find the deepest fractions
deepest = sorted(zip(depths, fracs), reverse=True)[:5]
print("Deepest fractions:")
for d, (p, q) in deepest:
    print(f"  {p}/{q} = {p/q:.4f}, depth={d}")

# --- Experiment 2: Binary fractions and float representation ---
# Hypothesis: decimal fractions with non-power-of-2 denominators cannot be
#             represented exactly as IEEE 754 floats.
# Try changing: the list of test fractions.

import struct

def float_to_exact_fraction(f):
    """
    Return the exact rational value of a float64 as (numerator, denominator).
    Uses Python's float.as_integer_ratio().
    """
    return f.as_integer_ratio()


test_decimals = [0.1, 0.2, 0.3, 0.25, 0.5, 0.125, 1/3, 2/3, 0.1 + 0.2]

print(f"{'Decimal':>12}  {'Exact float value as p/q':>35}  {'Denominator is 2^k?':>20}")
print("-" * 75)
for d in test_decimals:
    p, q = float_to_exact_fraction(d)
    is_power_of_2 = (q & (q - 1)) == 0  # power of 2 iff exactly one bit set
    k = q.bit_length() - 1 if is_power_of_2 else None
    k_str = f"2^{k}" if is_power_of_2 else "NO"
    print(f"{d:>12.17f}  {p:>20}/{q:<14}  {k_str:>20}")

# --- Mini Project: Best Rational Approximation Finder ---
import numpy as np
import matplotlib.pyplot as plt
import math

def best_rational_approximation(x, max_denom):
    """
    Find best rational approximation to x with denominator <= max_denom.
    Uses the Stern-Brocot / mediant algorithm.

    Returns list of (p, q, error) for each 'best so far' encountered.
    """
    lp, lq = 0, 1
    rp, rq = 1, 0
    best = []  # (p, q, abs_error)
    best_err = float('inf')

    while True:
        mp, mq = lp + rp, lq + rq
        if mq > max_denom:
            break
        err = abs(mp / mq - x)
        if err < best_err:
            best_err = err
            best.append((mp, mq, err))
        if x < mp / mq:
            rp, rq = mp, mq
        else:
            lp, lq = mp, mq

    return best


targets = {
    'π':      math.pi,
    '√2':     math.sqrt(2),
    'e':      math.e,
    'φ=(1+√5)/2': (1 + math.sqrt(5)) / 2,
}

MAX_DENOM = 1000

fig, axes = plt.subplots(2, 2, figsize=(14, 10))

for ax, (name, x) in zip(axes.flatten(), targets.items()):
    approxs = best_rational_approximation(x, MAX_DENOM)
    denoms = [q for _, q, _ in approxs]
    errors = [e for _, _, e in approxs]

    ax.loglog(denoms, errors, 'o-', color='steelblue', markersize=5)
    ax.set_xlabel('Denominator q', fontsize=10)
    ax.set_ylabel('|p/q - x|', fontsize=10)
    ax.set_title(f'Best approximations to {name} = {x:.6f}', fontsize=11)

    # Annotate the best approximation
    best_p, best_q, best_e = approxs[-1]
    ax.annotate(f'{best_p}/{best_q}\nerr={best_e:.2e}',
                xy=(best_q, best_e), xytext=(best_q/3, best_e*50),
                arrowprops=dict(arrowstyle='->', color='crimson'), fontsize=9)

plt.tight_layout()
plt.show()

# Special focus: π approximations
pi_approxs = best_rational_approximation(math.pi, 1000)
print("\nBest approximations to π with denominator ≤ 1000:")
print(f"{'p/q':>12}  {'value':>12}  {'error':>14}")
for p, q, e in pi_approxs[-10:]:
    print(f"{p}/{q:>4}  →  {p/q:>12.10f}  error: {e:.4e}")
