Prerequisites: ch072 (Fitting Simple Models)
You will learn:
Define and compute residuals, RMSE, MAE, R²
Diagnose model problems from residual plots
Understand bias-variance tradeoff at an intuitive level
Use residuals to improve model selection
Environment: Python 3.x, numpy, matplotlib
1. Concept¶
Residuals are the differences between observed and predicted values: eᵢ = yᵢ - ŷᵢ = yᵢ - f(xᵢ; θ)
They quantify how wrong the model is, point by point.
Error metrics:
MSE: mean((y - ŷ)²) — penalizes large errors more; sensitive to outliers
RMSE: √MSE — same units as y; interpretable as “typical error size”
MAE: mean(|y - ŷ|) — less sensitive to outliers
R²: 1 - SS_res/SS_tot — fraction of variance explained; 1=perfect, 0=mean prediction
Residual diagnostics:
Random scatter: good fit. Residuals should look like noise.
Systematic pattern (curve, wave): wrong model structure
Heteroscedasticity (increasing spread): variance isn’t constant — may need log transform
Outliers: large individual residuals — check data quality
2. Intuition & Mental Models¶
Physical analogy: Error diagnostics are like checking the alignment of a car. The car may drive straight on average (low mean error) but drift left under braking (systematic residual pattern at high speed). The pattern reveals a structural problem.
Computational analogy: In ML training, the loss curve is a macro-level error metric. The residuals are the micro-level: each data point’s individual misfit. Training minimizes the loss, but residual analysis checks if the model structure is correct.
3. Visualization¶

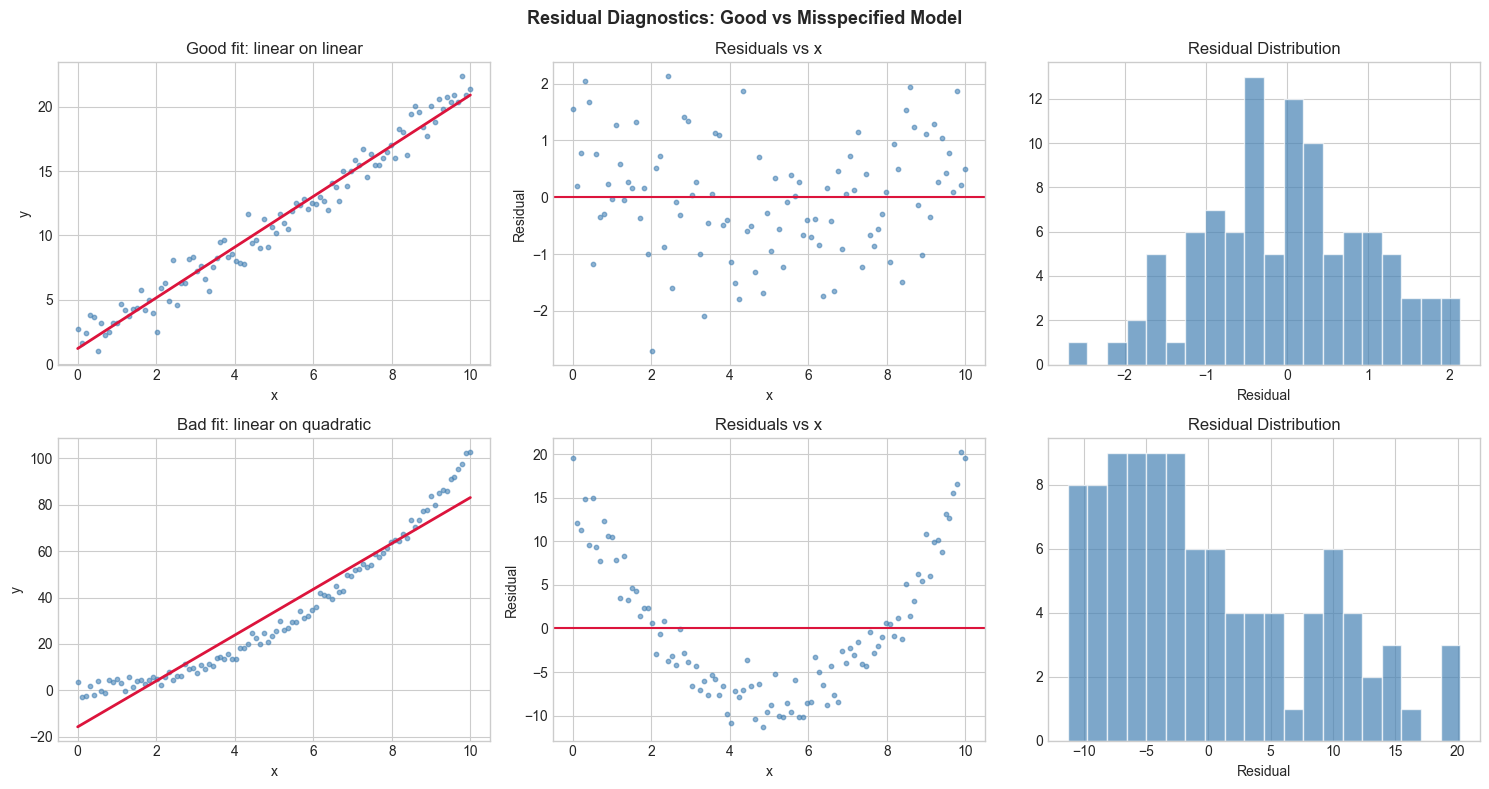

# --- Visualization: Residual diagnostic plots ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
np.random.seed(0)
x = np.linspace(0, 10, 100)
# Case 1: Correct model (linear)
y_true = 2*x + 1
y_obs = y_true + np.random.normal(0, 1, 100)
m, b, _ = (lambda c: (c[0],c[1], None))(np.linalg.lstsq(np.column_stack([x,np.ones(100)]), y_obs, rcond=None)[0])
y_hat_good = m*x + b
res_good = y_obs - y_hat_good
# Case 2: Wrong model (quadratic data, linear fit)
y_quad = x**2 + np.random.normal(0, 2, 100)
m2, b2 = np.linalg.lstsq(np.column_stack([x,np.ones(100)]), y_quad, rcond=None)[0]
y_hat_bad = m2*x + b2
res_bad = y_quad - y_hat_bad
fig, axes = plt.subplots(2, 3, figsize=(15, 8))
for row, (y_obs_plot, y_hat, res, label) in enumerate([(y_obs, y_hat_good, res_good, 'Good fit: linear on linear'),
(y_quad, y_hat_bad, res_bad, 'Bad fit: linear on quadratic')]):
axes[row,0].scatter(x, y_obs_plot, s=10, color='steelblue', alpha=0.6)
axes[row,0].plot(x, y_hat, color='crimson', linewidth=2)
axes[row,0].set_title(label); axes[row,0].set_xlabel('x'); axes[row,0].set_ylabel('y')
axes[row,1].scatter(x, res, s=10, color='steelblue', alpha=0.6)
axes[row,1].axhline(0, color='crimson', linewidth=1.5)
axes[row,1].set_title('Residuals vs x'); axes[row,1].set_xlabel('x'); axes[row,1].set_ylabel('Residual')
axes[row,2].hist(res, bins=20, color='steelblue', alpha=0.7, edgecolor='white')
axes[row,2].set_title('Residual Distribution'); axes[row,2].set_xlabel('Residual')
plt.suptitle('Residual Diagnostics: Good vs Misspecified Model', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()
5. Python Implementation¶
# --- Implementation: Error metrics and residual analysis ---
import numpy as np
def compute_metrics(y_true, y_pred):
"""
Compute standard regression error metrics.
Args:
y_true, y_pred: np.ndarray of observed and predicted values
Returns:
dict of metric name -> value
"""
y_true, y_pred = np.asarray(y_true), np.asarray(y_pred)
residuals = y_true - y_pred
n = len(y_true)
mse = np.mean(residuals**2)
rmse = np.sqrt(mse)
mae = np.mean(np.abs(residuals))
ss_res = np.sum(residuals**2)
ss_tot = np.sum((y_true - y_true.mean())**2)
r2 = 1 - ss_res / ss_tot if ss_tot > 0 else 0.0
return {'mse': mse, 'rmse': rmse, 'mae': mae, 'r2': r2,
'n': n, 'residual_mean': residuals.mean(), 'residual_std': residuals.std()}
def residual_autocorrelation(residuals, lag=1):
"""Compute lag-k autocorrelation of residuals.
If non-zero: systematic temporal pattern in errors."""
r = residuals - residuals.mean()
return np.sum(r[lag:] * r[:-lag]) / np.sum(r**2)
# Demo
np.random.seed(1)
x = np.linspace(0, 10, 80)
y = 3*x + 2 + np.random.normal(0, 2, 80)
m, b = np.linalg.lstsq(np.column_stack([x, np.ones(80)]), y, rcond=None)[0]
y_hat = m*x + b
metrics = compute_metrics(y, y_hat)
print("Error metrics:")
for k, v in metrics.items():
print(f" {k}: {v:.4f}")
print(f"\nResidual autocorrelation (lag 1): {residual_autocorrelation(y - y_hat):.4f}")
print("(Near 0 = good; large value = systematic pattern in errors)")Error metrics:
mse: 3.5895
rmse: 1.8946
mae: 1.5188
r2: 0.9578
n: 80.0000
residual_mean: 0.0000
residual_std: 1.8946
Residual autocorrelation (lag 1): -0.0744
(Near 0 = good; large value = systematic pattern in errors)
6. Experiments¶
Experiment 1: Generate data with heteroscedastic errors (variance grows with x): y = 2x + noise where noise ~ N(0, x). Plot residuals vs x. What pattern do you see?
Experiment 2: For the same dataset, try a log transformation (fit to log(y) vs x). Do the residuals become more homoscedastic?
7. Exercises¶
Easy 1. Compute MSE, RMSE, MAE, R² for predictions [2, 4, 6] vs true [2.1, 3.8, 6.5].
Easy 2. If R² = 0.9, what fraction of variance is unexplained? What does R² = 0 mean?
Medium 1. Implement a residual_plot_suite(y_true, y_pred, x) that generates: (1) residuals vs x, (2) residuals vs y_pred, (3) histogram of residuals, (4) Q-Q plot against normal.
Medium 2. Generate data from y = sin(x) + noise on [0, 10]. Fit with linear, cubic, and sine+linear models. Compare R² and residual autocorrelation. Which model has least residual structure?
Hard. Prove that R² can be negative when the model is worse than predicting the mean. Construct a concrete example where a quadratic model gives R² < 0 on test data (despite good training R²). This demonstrates overfitting.
9. Chapter Summary & Connections¶
Residual = observed - predicted; should look like random noise for a good fit
RMSE: typical error size in original units; R²: fraction of variance explained
Residual patterns reveal model misspecification (curve → wrong family, increasing spread → heteroscedasticity)
Residual autocorrelation detects systematic temporal patterns
Forward connections:
ch277 (Bias and Variance) formalizes the decomposition of prediction error
ch288 (Overfitting) connects residual patterns to generalization failure
ch290 (Cross Validation) uses held-out residuals to estimate generalization error
