Prerequisites: ch051–070 (Functions and Transformations)
Concepts used: Domain/range, function families, transformations, parameter sensitivity
Output: An interactive multi-panel function explorer with parameter controls
Difficulty: Intermediate | ~45 minutes
0. Overview¶
This is a Project chapter. Each stage builds on the previous. Read the problem statement, then execute the stages in order.
1. Setup¶
# --- Setup ---
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.widgets import Slider, Button
plt.style.use('seaborn-v0_8-whitegrid')
# Function library: (name, fn_template, param_names, param_ranges, param_defaults)
FUNCTION_LIBRARY = {
'sine': (lambda x, A, omega, phi: A * np.sin(omega * x + phi),
['A', 'omega', 'phi'], [(0.1, 3), (0.1, 5), (-np.pi, np.pi)], [1, 1, 0]),
'logistic': (lambda x, L, k, x0: L / (1 + np.exp(-k * (x - x0))),
['L', 'k', 'x0'], [(0.5, 5), (0.1, 5), (-5, 5)], [1, 1, 0]),
'gaussian': (lambda x, mu, sigma, A: A * np.exp(-(x-mu)**2 / (2*sigma**2)),
['mu', 'sigma', 'A'], [(-5, 5), (0.1, 3), (0.1, 3)], [0, 1, 1]),
'power': (lambda x, n, a: a * np.abs(x)**n * np.sign(x),
['n', 'a'], [(0.1, 5), (-3, 3)], [2, 1]),
}
print("Function library loaded:", list(FUNCTION_LIBRARY.keys()))Function library loaded: ['sine', 'logistic', 'gaussian', 'power']

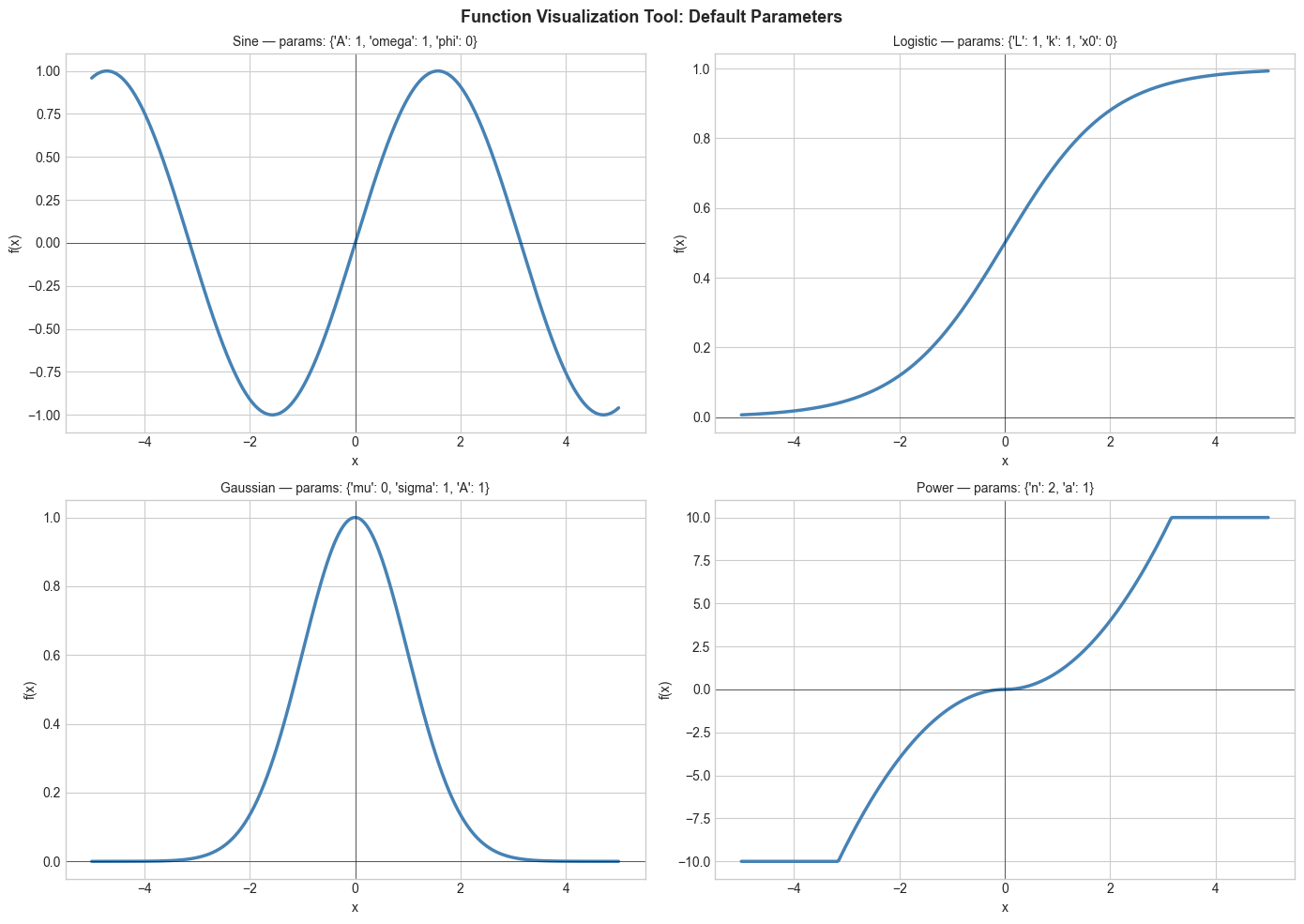

2. Stage 1 — Static Multi-Function Plot¶
Plot all four function families with default parameters to establish a visual reference.
# Stage 1: Plot all functions with default parameters
x = np.linspace(-5, 5, 500)
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
for ax, (name, (fn, params, ranges, defaults)) in zip(axes.flat, FUNCTION_LIBRARY.items()):
with np.errstate(invalid='ignore', over='ignore'):
y = fn(x, *defaults)
y_clipped = np.clip(y, -10, 10)
ax.plot(x, y_clipped, color='steelblue', linewidth=2.5)
ax.axhline(0, color='black', linewidth=0.4)
ax.axvline(0, color='black', linewidth=0.4)
ax.set_title(f"{name.capitalize()} — params: {dict(zip(params, defaults))}", fontsize=10)
ax.set_xlabel('x'); ax.set_ylabel('f(x)')
plt.suptitle('Function Visualization Tool: Default Parameters', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()
3. Stage 2 — Domain and Range Analysis¶
For each function, compute and display the range over the domain [-5, 5], and identify any points of discontinuity.
# Stage 2: Domain and range analysis
x = np.linspace(-5, 5, 2000)
print("Domain and Range Analysis:")
print("-" * 60)
for name, (fn, params, ranges, defaults) in FUNCTION_LIBRARY.items():
with np.errstate(invalid='ignore', over='ignore'):
y = fn(x, *defaults)
finite_mask = np.isfinite(y)
y_valid = y[finite_mask]
if len(y_valid) > 0:
y_min, y_max = y_valid.min(), y_valid.max()
coverage = 100 * finite_mask.sum() / len(x)
print(f"{name:12s}: range=[{y_min:.3f}, {y_max:.3f}], domain coverage={coverage:.1f}%")
else:
print(f"{name:12s}: no valid outputs")
print()
# Find zeros (sign changes)
for name, (fn, params, ranges, defaults) in FUNCTION_LIBRARY.items():
with np.errstate(invalid='ignore'):
y = fn(x, *defaults)
finite = np.isfinite(y)
if finite.any():
sign = np.sign(y[finite])
zc = np.sum(np.diff(sign) != 0)
print(f"{name:12s}: ~{zc} zero crossings")Domain and Range Analysis:
------------------------------------------------------------
sine : range=[-1.000, 1.000], domain coverage=100.0%
logistic : range=[0.007, 0.993], domain coverage=100.0%
gaussian : range=[0.000, 1.000], domain coverage=100.0%
power : range=[-25.000, 25.000], domain coverage=100.0%
sine : ~3 zero crossings
logistic : ~0 zero crossings
gaussian : ~0 zero crossings
power : ~1 zero crossings

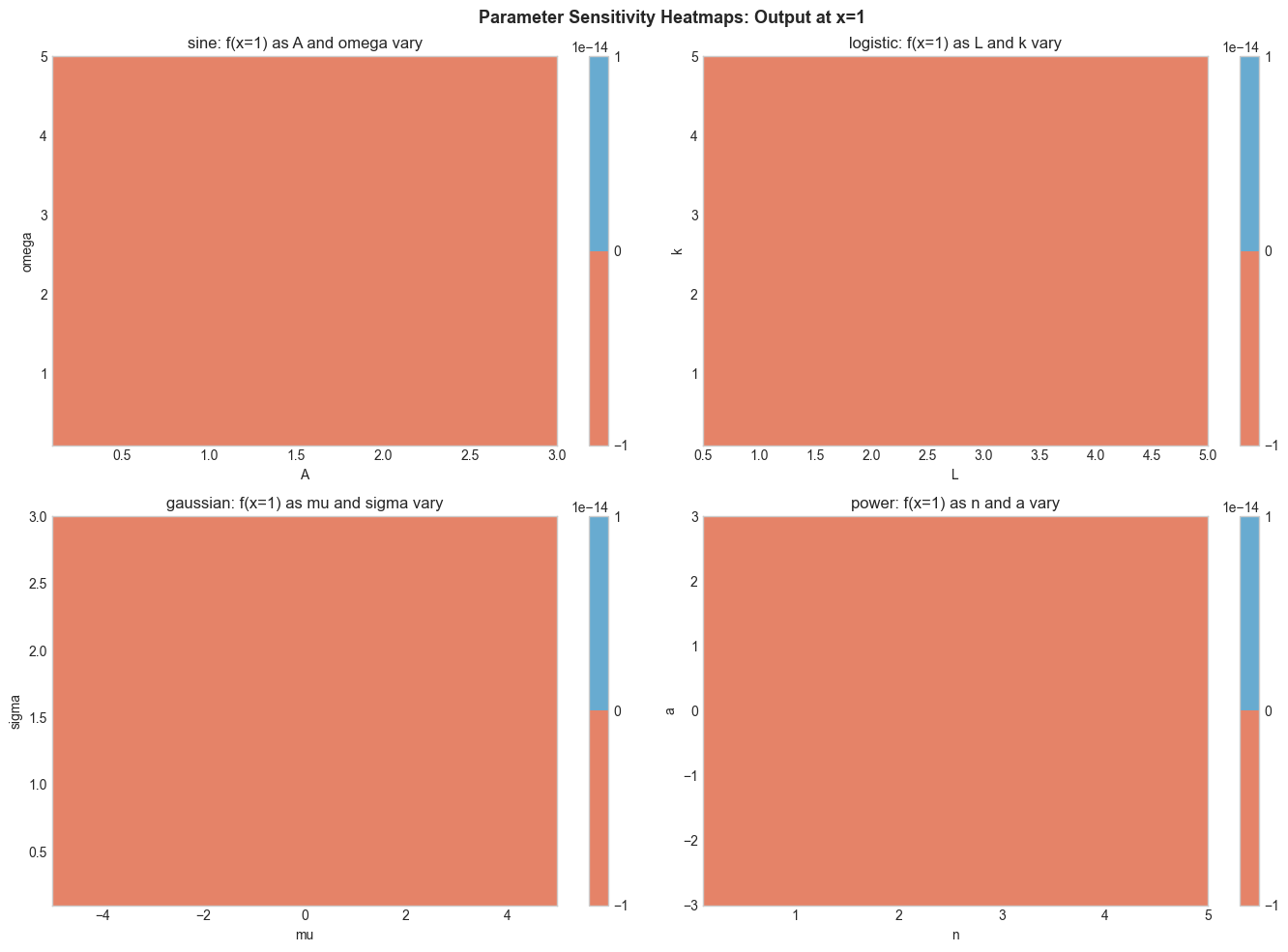

4. Stage 3 — Parameter Sensitivity Heatmap¶
For each function, vary two parameters on a grid and visualize how the output at a fixed x=1 changes.
# Stage 3: Parameter sensitivity visualization
from itertools import combinations
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
test_x = 1.0
for ax, (name, (fn, params, ranges, defaults)) in zip(axes.flat, FUNCTION_LIBRARY.items()):
if len(params) >= 2:
p0_range = np.linspace(*ranges[0], 30)
p1_range = np.linspace(*ranges[1], 30)
P0, P1 = np.meshgrid(p0_range, p1_range)
Z = np.zeros_like(P0)
for i in range(30):
for j in range(30):
p = defaults.copy()
p[0] = P0[i, j]
p[1] = P1[i, j]
try:
with np.errstate(invalid='ignore', overflow='ignore'):
val = fn(test_x, *p)
Z[i, j] = val if np.isfinite(val) else 0
except:
Z[i, j] = 0
Z_clipped = np.clip(Z, -10, 10)
im = ax.contourf(P0, P1, Z_clipped, levels=20, cmap='RdBu')
plt.colorbar(im, ax=ax)
ax.set_title(f"{name}: f(x=1) as {params[0]} and {params[1]} vary")
ax.set_xlabel(params[0]); ax.set_ylabel(params[1])
else:
ax.text(0.5, 0.5, f"{name}: only 1 parameter", ha='center', va='center', transform=ax.transAxes)
ax.set_title(name)
plt.suptitle('Parameter Sensitivity Heatmaps: Output at x=1', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()

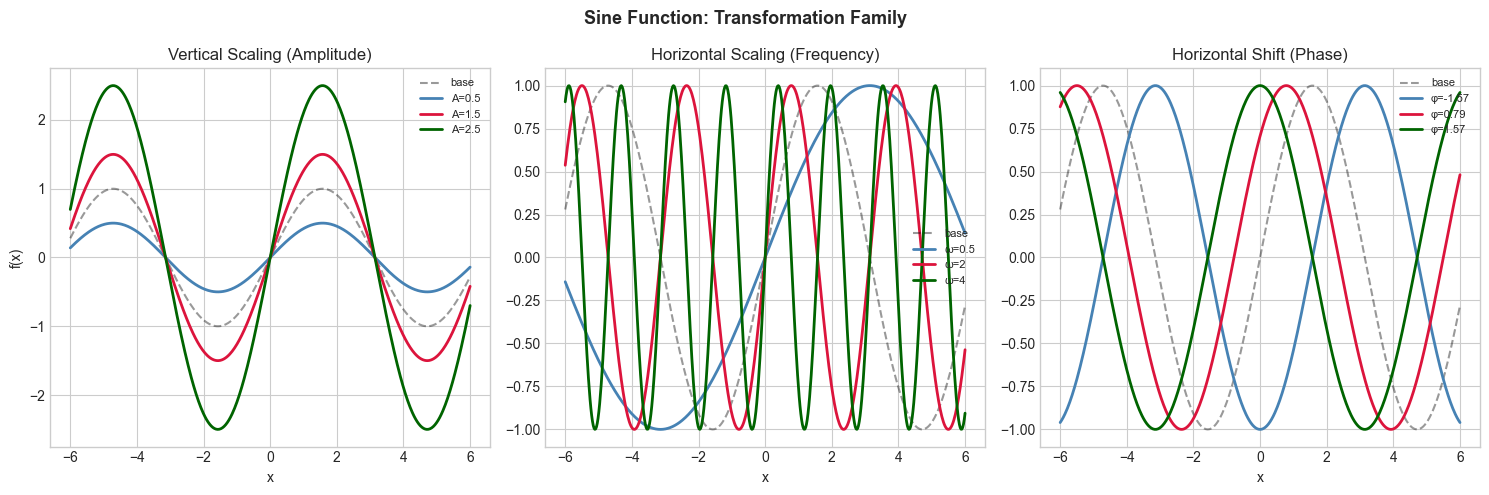

5. Stage 4 — Transformation Comparison¶
Apply vertical shift, horizontal shift, and scaling to one function family and display the family of curves.
# Stage 4: Transformation explorer
fn, param_names, ranges, defaults = FUNCTION_LIBRARY['sine']
x = np.linspace(-6, 6, 500)
fig, axes = plt.subplots(1, 3, figsize=(15, 5))
base = fn(x, *defaults)
# Vary amplitude
ax = axes[0]
ax.plot(x, base, 'k--', linewidth=1.5, alpha=0.4, label='base')
for A, color in zip([0.5, 1.5, 2.5], ['steelblue', 'crimson', 'darkgreen']):
p = defaults.copy(); p[0] = A
ax.plot(x, fn(x, *p), color=color, linewidth=2, label=f'A={A}')
ax.set_title('Vertical Scaling (Amplitude)'); ax.legend(fontsize=8)
ax.set_xlabel('x'); ax.set_ylabel('f(x)')
# Vary frequency
ax = axes[1]
ax.plot(x, base, 'k--', linewidth=1.5, alpha=0.4, label='base')
for omega, color in zip([0.5, 2, 4], ['steelblue', 'crimson', 'darkgreen']):
p = defaults.copy(); p[1] = omega
ax.plot(x, fn(x, *p), color=color, linewidth=2, label=f'ω={omega}')
ax.set_title('Horizontal Scaling (Frequency)'); ax.legend(fontsize=8)
ax.set_xlabel('x')
# Vary phase
ax = axes[2]
ax.plot(x, base, 'k--', linewidth=1.5, alpha=0.4, label='base')
for phi, color in zip([-np.pi/2, np.pi/4, np.pi/2], ['steelblue', 'crimson', 'darkgreen']):
p = defaults.copy(); p[2] = phi
ax.plot(x, fn(x, *p), color=color, linewidth=2, label=f'φ={phi:.2f}')
ax.set_title('Horizontal Shift (Phase)'); ax.legend(fontsize=8)
ax.set_xlabel('x')
plt.suptitle('Sine Function: Transformation Family', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()
6. Results & Reflection¶
What was built: A complete function visualization tool covering: static multi-panel plots, domain/range analysis, parameter sensitivity heatmaps, and transformation families.
What math made it possible:
Function definitions and domain analysis (ch051–053)
Function families and parameterization (ch070)
Function transformations: shift, scale, reflect (ch066–068)
Parameter sensitivity (ch069)
Extension challenges:
Add a 5th function family: the Weierstrass function (continuous but nowhere differentiable)
Add animation: smoothly morph between two parameter configurations using matplotlib’s FuncAnimation
Extend to 2D: visualize f(x, y) = sin(x)·cos(y) as a 3D surface or contour plot
