Prerequisites: ch094 (Distance), ch097 (Lines)
Outcomes: Define circle algebraically and geometrically; Derive arc length, sector area, and chord properties; Implement circle operations and use them in collision detection
Circle Algebra¶
A circle with center (h, k) and radius r: (x-h)² + (y-k)² = r²
This is just the distance formula: every point on the circle is exactly distance r from the center.
Key derived quantities:
Circumference: C = 2πr
Area: A = πr²
Arc length for angle θ (radians): s = r·θ
Sector area: A = r²θ/2
Chord length for a central angle θ: chord = 2r·sin(θ/2)
These formulas come from trigonometry (ch101–103). The circle and trigonometry are inseparable.
# --- Circle operations and properties ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
def circle_arc(cx, cy, r, theta_start, theta_end, n=100):
"""Points on circle arc from theta_start to theta_end (radians)."""
theta = np.linspace(theta_start, theta_end, n)
return cx + r*np.cos(theta), cy + r*np.sin(theta)
fig, axes = plt.subplots(1, 2, figsize=(13, 5))
# Circle anatomy
cx, cy, r = 2, 2, 3
theta = np.linspace(0, 2*np.pi, 300)
axes[0].plot(cx+r*np.cos(theta), cy+r*np.sin(theta), 'steelblue', linewidth=2)
axes[0].plot(cx, cy, 'b+', markersize=12)
# Radius
axes[0].plot([cx, cx+r], [cy, cy], 'crimson', linewidth=2, label=f'radius r={r}')
# Chord
theta_chord = np.pi/3
axes[0].plot([cx+r*np.cos(0), cx+r*np.cos(theta_chord)],
[cy+r*np.sin(0), cy+r*np.sin(theta_chord)], 'darkgreen', linewidth=2, label='chord')
# Arc
arc_x, arc_y = circle_arc(cx, cy, r, 0, theta_chord, 50)
axes[0].plot(arc_x, arc_y, 'darkorange', linewidth=4, alpha=0.6, label=f'arc (θ={theta_chord:.2f} rad)')
# Sector fill
sector_theta = np.linspace(0, theta_chord, 50)
sx = np.append([cx], cx + r*np.cos(sector_theta)); sx = np.append(sx, cx)
sy = np.append([cy], cy + r*np.sin(sector_theta)); sy = np.append(sy, cy)
axes[0].fill(sx, sy, alpha=0.15, color='gold', label='sector')
axes[0].set_aspect('equal'); axes[0].legend(fontsize=8)
axes[0].set_title(f'Circle Anatomy C={2*np.pi*r:.2f}, A={np.pi*r**2:.2f}')
# Inscribed angles
axes[1].plot(np.cos(theta), np.sin(theta), 'steelblue', linewidth=2, label='Unit circle')
# Inscribed angle theorem: inscribed angle = half central angle
central_theta = np.pi/2
A_pt = np.array([np.cos(0), np.sin(0)])
B_pt = np.array([np.cos(central_theta), np.sin(central_theta)])
# Any point on major arc subtends half the central angle
P_pt = np.array([np.cos(np.pi*1.3), np.sin(np.pi*1.3)])
for pt, col, lbl in [(A_pt,'crimson','A'),(B_pt,'darkgreen','B'),(P_pt,'darkorange','P (inscribed)')]:
axes[1].plot(*pt,'o',color=col,markersize=10)
axes[1].annotate(lbl, pt, xytext=(5,5), textcoords='offset points', fontsize=10)
axes[1].plot([P_pt[0],A_pt[0]],[P_pt[1],A_pt[1]],'darkorange',lw=1.5)
axes[1].plot([P_pt[0],B_pt[0]],[P_pt[1],B_pt[1]],'darkorange',lw=1.5)
axes[1].plot([0,A_pt[0]],[0,A_pt[1]],'gray',lw=1,linestyle='--')
axes[1].plot([0,B_pt[0]],[0,B_pt[1]],'gray',lw=1,linestyle='--')
axes[1].set_aspect('equal'); axes[1].set_title('Inscribed Angle = Half Central Angle')

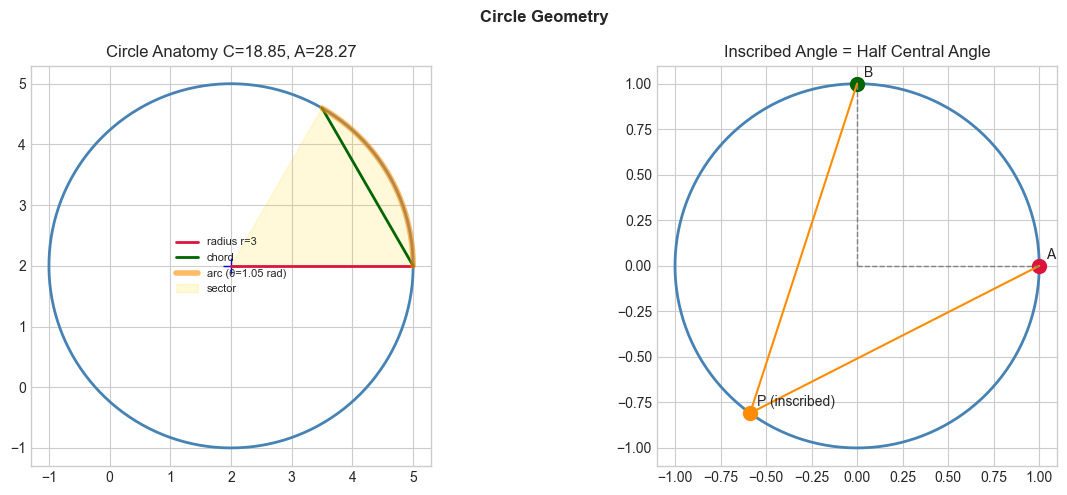

plt.suptitle('Circle Geometry', fontsize=12, fontweight='bold')
plt.tight_layout(); plt.show()
r = 3
print(f"Circle r={r}: C={2*np.pi*r:.4f}, A={np.pi*r**2:.4f}")
theta_arc = np.pi/3
print(f"Arc θ=π/3: length={r*theta_arc:.4f}, sector area={r**2*theta_arc/2:.4f}")
print(f"Chord θ=π/3: {2*r*np.sin(theta_arc/2):.4f}")
Circle r=3: C=18.8496, A=28.2743
Arc θ=π/3: length=3.1416, sector area=4.7124
Chord θ=π/3: 3.0000
Collision Detection¶
Two circles (c₁, r₁) and (c₂, r₂) collide if d(c₁, c₂) < r₁ + r₂. A point P is inside circle (c, r) if d(P, c) < r. These are O(1) tests — used millions of times per second in games.
(Connects to ch118 — Geometry in Game Development.)
Exercises¶
Easy 1. A circle has center (3,4) and passes through (0,0). What is its radius?
Easy 2. Compute the arc length and sector area for a circle of r=5 with central angle 2π/3.
Medium 1. Implement circle_circle_intersection(c1,r1,c2,r2) that returns 0, 1, or 2 intersection points.
Hard. Apollonius’ problem: given three mutually tangent circles, find the circle tangent to all three. Implement numerically.
Summary¶
Circle: (x-h)²+(y-k)²=r² — the set of points at distance r from center
Arc = rθ; sector area = r²θ/2; chord = 2r·sin(θ/2)
Collision detection: compare distance between centers to sum of radii
Forward: ch101–103 (Trigonometry) explains where arc and chord formulas come from.
