Prerequisites: ch093–095 (Coordinates, Distances, Interpolation)
Outcomes: Classify the four elementary geometric transformations; Understand the composition and inversion of transformations; Preview the matrix representation (formalized in ch114)
The Four Elementary Transformations¶
Every geometric transformation in 2D is built from four types:
Rotation: Turn all points by angle θ around a center
Scaling: Multiply all coordinates by scale factors
Reflection: Flip all points across a line
Translation: Move all points by a displacement vector
Key properties:
Rotation, scaling (uniform), and reflection preserve angles (conformal)
Rotation and reflection preserve distances (isometry)
Translation preserves both distances and angles
Non-uniform scaling distorts angles
Composition: Apply T₁ then T₂ → a new transformation T = T₂∘T₁ Order matters: T₂∘T₁ ≠ T₁∘T₂ in general (transformations do not commute)
The unifying insight: All four can be represented as matrix operations. Translation requires a trick (homogeneous coordinates, ch114). The others are direct 2×2 matrix multiplications.
Preview: Transformation Matrices¶
| Transformation | Matrix (2×2) |
|---|---|
| Rotation by θ | [[cos θ, -sin θ], [sin θ, cos θ]] |
| Scale (sx, sy) | [[sx, 0], [0, sy]] |
| Reflection (x-axis) | [[1, 0], [0, -1]] |
| Reflection (y-axis) | [[-1, 0], [0, 1]] |
These matrices are derived and used in ch109–111. Translation does not fit this 2×2 form — ch112 and ch114 handle it with homogeneous coordinates.
Composition = matrix multiplication: Apply rotation then scale = (Scale matrix) × (Rotation matrix)

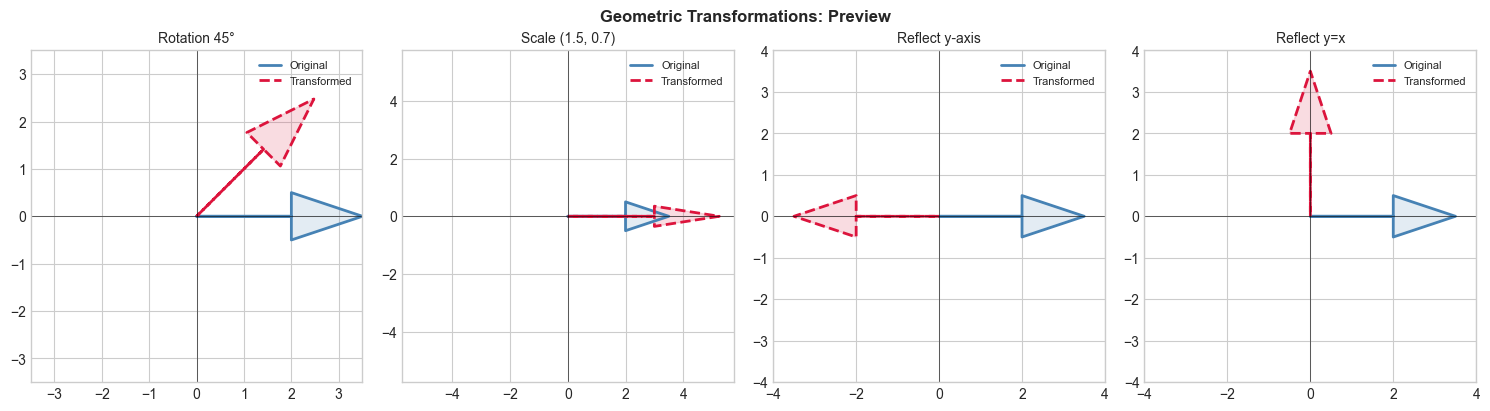

# --- Transformation preview ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
# A simple shape: arrow polygon
arrow = np.array([[0,0],[2,0],[2,0.5],[3.5,0],[2,-0.5],[2,0],[0,0]], dtype=float)
def apply_transform(pts, M):
return (M @ pts[:, :2].T).T
fig, axes = plt.subplots(1, 4, figsize=(15, 4))
theta = np.radians(45)
transforms = [
('Rotation 45°', np.array([[np.cos(theta),-np.sin(theta)],[np.sin(theta),np.cos(theta)]])),
('Scale (1.5, 0.7)', np.array([[1.5,0],[0,0.7]])),
('Reflect y-axis', np.array([[-1,0],[0,1]])),
('Reflect y=x', np.array([[0,1],[1,0]])),
]
for ax, (name, M) in zip(axes, transforms):
transformed = apply_transform(arrow, M)
ax.fill(arrow[:,0], arrow[:,1], alpha=0.15, color='steelblue')
ax.plot(arrow[:,0], arrow[:,1], 'steelblue', lw=2, label='Original')
ax.fill(transformed[:,0], transformed[:,1], alpha=0.15, color='crimson')
ax.plot(transformed[:,0], transformed[:,1], 'crimson', lw=2, linestyle='--', label='Transformed')
ax.set_aspect('equal'); ax.set_title(name, fontsize=10); ax.legend(fontsize=8)
ax.axhline(0, color='k', linewidth=0.4); ax.axvline(0, color='k', linewidth=0.4)
lim = max(3.5, abs(transformed).max() + 0.5)
ax.set_xlim(-lim, lim); ax.set_ylim(-lim, lim)
plt.suptitle('Geometric Transformations: Preview', fontsize=12, fontweight='bold')
plt.tight_layout(); plt.show()
Summary¶
Four elementary transformations: rotation, scaling, reflection, translation
All (except translation) representable as 2×2 matrix multiplication
Translation requires homogeneous coordinates (ch114)
Composition = matrix product; order matters
Next three chapters: ch109–111 derive and implement each transformation in detail.
