Prerequisites: ch114 (Affine Transformations), ch092–093 (Coordinates)
Outcomes: Map 3D world to 2D screen; Understand the graphics pipeline; Implement basic perspective projection; Rasterize a triangle
The Graphics Pipeline¶
The path from 3D geometry to screen pixels:
Model space → World space: apply model transform (position/orient the object)
World space → Camera space: apply view transform (move world relative to camera)
Camera space → Clip space: apply projection (perspective or orthographic)
Clip space → NDC: normalize device coordinates [-1,1]³
NDC → Screen space: viewport transform (map to pixel coordinates)
Each step is a matrix multiplication. The full transform per vertex: v_screen = M_viewport · M_project · M_view · M_model · v_world
This is 4 matrix multiplications in sequence, done on every vertex — the heart of the GPU.
Perspective Projection¶
Perspective projection makes distant objects appear smaller: x’ = f·x/z, y’ = f·y/z
where f is the focal length. The division by z is non-linear — it cannot be represented as a standard matrix multiplication.
However, using homogeneous coordinates: P_proj = [[f,0,0,0],[0,f,0,0],[0,0,1,1],[0,0,0,0]] · [x,y,z,1]ᵀ = [fx,fy,z,z]
Then divide by the w component (z) to get normalized coords: (fx/z, fy/z, 1).
Orthographic projection (no perspective): simply drop z. P_ortho = [[1,0,0],[0,1,0]] · [x,y,z]ᵀ = [x,y]
# --- Projection and rendering ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
def perspective_project(pts3d, f=2.0):
"""Project (N,3) points to (N,2) using perspective: x' = f*x/z, y' = f*y/z."""
pts = np.asarray(pts3d, dtype=float)
z = pts[:,2]
x2d = f * pts[:,0] / z
y2d = f * pts[:,1] / z
return np.column_stack([x2d, y2d])
def rotate_y(pts, theta):
c, s = np.cos(theta), np.sin(theta)
R = np.array([[c,0,s],[0,1,0],[-s,0,c]])
return (R @ pts.T).T
# 3D cube vertices and edges
v = np.array([[-1,-1,-1],[-1,-1,1],[-1,1,-1],[-1,1,1],
[1,-1,-1],[1,-1,1],[1,1,-1],[1,1,1]], dtype=float)
edges = [(0,1),(0,2),(0,4),(1,3),(1,5),(2,3),(2,6),(3,7),(4,5),(4,6),(5,7),(6,7)]
v_scene = v + np.array([0,0,5]) # move cube 5 units in front
fig, axes = plt.subplots(1,3,figsize=(14,4))
for ax, angle in zip(axes, [0, 25, 50]):
v_rot = rotate_y(v_scene, np.radians(angle))
projected = perspective_project(v_rot, f=3)
for i,j in edges:
ax.plot([projected[i,0],projected[j,0]],[projected[i,1],projected[j,1]],'steelblue',lw=2)
ax.set_aspect('equal'); ax.set_xlim(-2,2); ax.set_ylim(-2,2)
ax.set_title(f'Perspective projection (rotation={angle}°)')
ax.set_xlabel('x screen'); ax.set_ylabel('y screen')

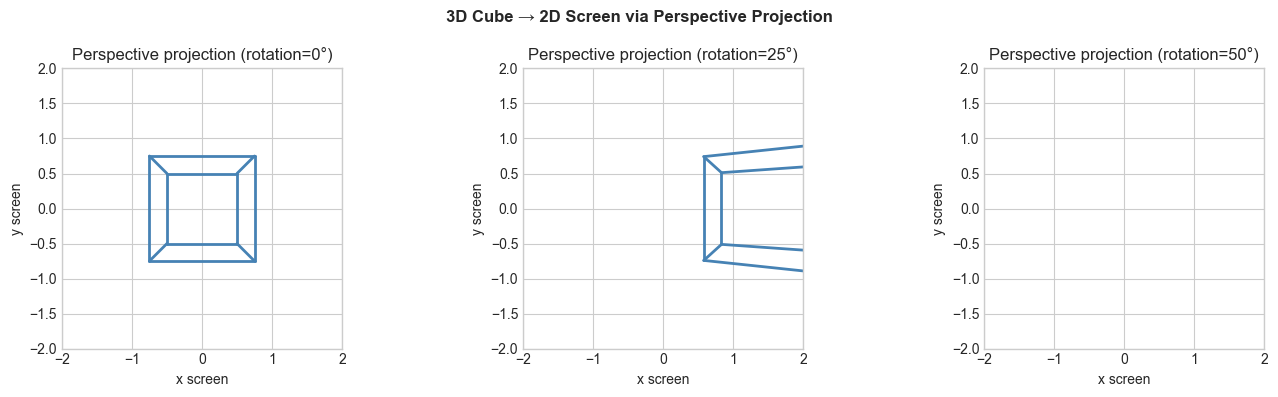

plt.suptitle('3D Cube → 2D Screen via Perspective Projection', fontsize=12, fontweight='bold')
plt.tight_layout(); plt.show()
Rasterization¶
# --- Triangle rasterization ---
import numpy as np
import matplotlib.pyplot as plt
def rasterize_triangle(v0, v1, v2, width=200, height=200):
"""Fill a triangle using barycentric coordinates."""
canvas = np.zeros((height, width, 3))
xmin = max(0, int(min(v0[0],v1[0],v2[0])))
xmax = min(width-1, int(max(v0[0],v1[0],v2[0]))+1)
ymin = max(0, int(min(v0[1],v1[1],v2[1])))
ymax = min(height-1, int(max(v0[1],v1[1],v2[1]))+1)
def edge_fn(a,b,p):
return (p[0]-a[0])*(b[1]-a[1]) - (p[1]-a[1])*(b[0]-a[0])
area = edge_fn(v0,v1,v2)
for y in range(ymin, ymax):
for x in range(xmin, xmax):
p = (x+0.5, y+0.5)
w0 = edge_fn(v1,v2,p)/area
w1 = edge_fn(v2,v0,p)/area
w2 = edge_fn(v0,v1,p)/area
if w0>=0 and w1>=0 and w2>=0:
# Color = barycentric interpolation of vertex colors
canvas[y,x] = w0*np.array([1,0,0]) + w1*np.array([0,1,0]) + w2*np.array([0,0,1])
return canvas
canvas = rasterize_triangle((20,20),(160,40),(90,170))
fig, ax = plt.subplots(figsize=(5,5))
ax.imshow(canvas, origin='lower'); ax.set_title('Rasterized Triangle (Color = barycentric interpolation)')
ax.axis('off'); plt.tight_layout(); plt.show()
Summary¶
Graphics pipeline: 5 matrix transforms per vertex: model→world→camera→clip→screen
Perspective: x’=f·x/z — cannot be linear, needs homogeneous coordinate trick
Rasterization: for each pixel, test if inside triangle using edge functions
Barycentric coordinates (w₀,w₁,w₂) interpolate any per-vertex attribute
Forward: ch164 (Linear Transformations) formalizes the matrix pipeline; ch177 (Word Embeddings) uses similar projection ideas for dimensionality reduction.
