Advanced Calculus Experiment 6.
When functions output vectors (Part V), differentiation produces new vector operators: divergence measures outward flow at a point, curl measures rotation. These are the mathematical tools of fluid dynamics, electromagnetism, and — less obviously — understanding how gradients flow in neural networks.
import numpy as np
import matplotlib.pyplot as plt
# Vector field: F(x,y) = (-y, x) — pure rotation
def F_rotate(x, y): return -y, x
# Divergence: dFx/dx + dFy/dy = 0 + 0 = 0 (incompressible)
# Curl: dFy/dx - dFx/dy = 1 - (-1) = 2 (constant rotation)
# Vector field: F(x,y) = (x, y) — pure expansion
def F_expand(x, y): return x, y
# Divergence: 1 + 1 = 2 (expanding flow)
# Curl: 0 - 0 = 0 (no rotation)
x_g = np.linspace(-2, 2, 15)
y_g = np.linspace(-2, 2, 15)
X, Y = np.meshgrid(x_g, y_g)
fig, axes = plt.subplots(1, 2, figsize=(12, 5))
for ax, field_fn, title, color in zip(axes,
[F_rotate, F_expand],
['Rotation field (div=0, curl=2)', 'Expansion field (div=2, curl=0)'],
['blue', 'red']):
U, V = field_fn(X, Y)
ax.quiver(X, Y, U, V, color=color, alpha=0.7)
ax.set_title(title); ax.set_aspect('equal')
ax.set_xlabel('x'); ax.set_ylabel('y'); ax.grid(True, alpha=0.3)

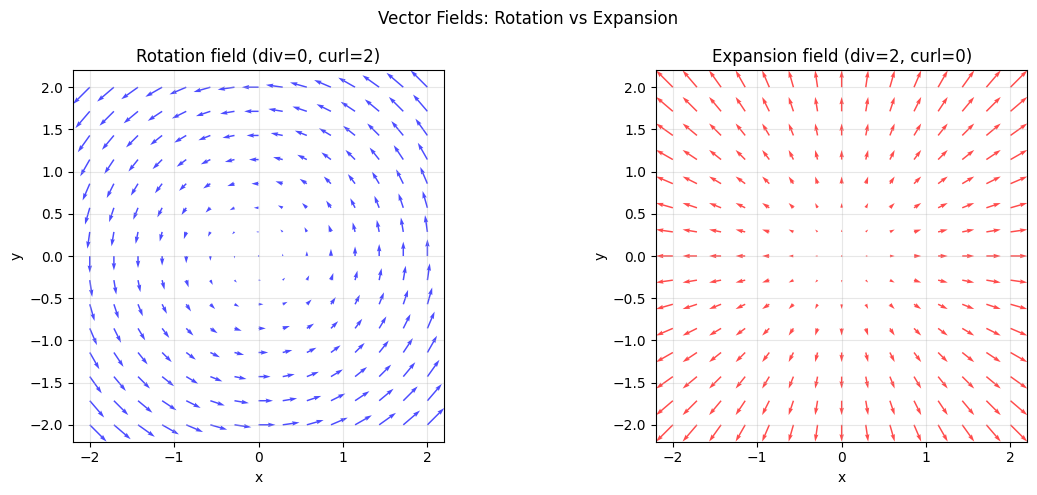

plt.suptitle('Vector Fields: Rotation vs Expansion', fontsize=12)
plt.tight_layout(); plt.savefig('ch236_vector_fields.png', dpi=100); plt.show()
# Numerically compute divergence and curl
def numerical_divergence(Fx_fn, Fy_fn, x, y, h=1e-5):
dFx_dx = (Fx_fn(x+h, y) - Fx_fn(x-h, y)) / (2*h)
dFy_dy = (Fy_fn(x, y+h) - Fy_fn(x, y-h)) / (2*h)
return dFx_dx + dFy_dy
def numerical_curl_z(Fx_fn, Fy_fn, x, y, h=1e-5):
dFy_dx = (Fy_fn(x+h, y) - Fy_fn(x-h, y)) / (2*h)
dFx_dy = (Fx_fn(x, y+h) - Fx_fn(x, y-h)) / (2*h)
return dFy_dx - dFx_dy
# Evaluate at a few points
pts = [(0, 1), (1, 0), (-1, 1)]
print("Point | div(rotate) | curl(rotate) | div(expand) | curl(expand)")
print("-" * 72)
for (px, py) in pts:
dr = numerical_divergence(lambda x,y: F_rotate(x,y)[0], lambda x,y: F_rotate(x,y)[1], px, py)
cr = numerical_curl_z(lambda x,y: F_rotate(x,y)[0], lambda x,y: F_rotate(x,y)[1], px, py)
de = numerical_divergence(lambda x,y: F_expand(x,y)[0], lambda x,y: F_expand(x,y)[1], px, py)
ce = numerical_curl_z(lambda x,y: F_expand(x,y)[0], lambda x,y: F_expand(x,y)[1], px, py)
print(f"({px:+.1f}, {py:+.1f}) | {dr:>12.2f} | {cr:>13.2f} | {de:>12.2f} | {ce:>12.2f}")
Point | div(rotate) | curl(rotate) | div(expand) | curl(expand)
------------------------------------------------------------------------
(+0.0, +1.0) | 0.00 | 2.00 | 2.00 | 0.00
(+1.0, +0.0) | 0.00 | 2.00 | 2.00 | 0.00
(-1.0, +1.0) | 0.00 | 2.00 | 2.00 | 0.00
Summary¶
| Operator | Formula | Meaning |
|---|---|---|
| Gradient | del f | Direction of steepest ascent |
| Divergence | del . F | Net outward flow at a point |
| Curl | del x F | Rotational tendency at a point |
| Laplacian | del^2 f | Sum of second partial derivatives |
Forward reference: The Laplacian operator (divergence of gradient) appears in physics-informed neural networks and graph neural networks (Part IX advanced topics).
