Prerequisites: ch070 (Function Families), ch017 (Mathematical Modeling)
You will learn:
Apply the modeling cycle: observe → hypothesize → fit → validate
Choose an appropriate function family for a real dataset
Understand the difference between interpolation and extrapolation
Recognize when a model is wrong
Environment: Python 3.x, numpy, matplotlib
1. Concept¶
Mathematical modeling is the process of representing a real-world phenomenon with a mathematical function.
The modeling cycle:
Observe: collect data or describe the phenomenon qualitatively
Hypothesize: propose a function family (linear? exponential? logistic?)
Fit: find parameter values that minimize error on observed data
Validate: test on held-out data; check assumptions
Refine or reject: revise hypothesis if validation fails
Interpolation vs extrapolation:
Interpolation: predicting within the range of observed data — generally reliable
Extrapolation: predicting beyond the data range — dangerous; model structure must be trusted
When a model is wrong:
Residuals show systematic patterns (not random) → wrong function family
Model fits training data but fails on new data → overfitting
Model misses obvious features → underfitting or wrong family
(Recall ch017: mathematical models are simplifications. All models are wrong; some are useful.)
2. Intuition & Mental Models¶
Physical analogy: A weather forecast is a model. The model’s function family (atmospheric equations) encodes physical laws. Parameter fitting uses observed pressure, temperature, humidity. Validation happens the next day. If the forecast is systematically wrong in a direction, the model structure needs revision.
Computational analogy: Machine learning is automated modeling. The algorithm searches over a hypothesis class (function family) and finds parameters that minimize error. The same cycle applies: train, validate, revise architecture.

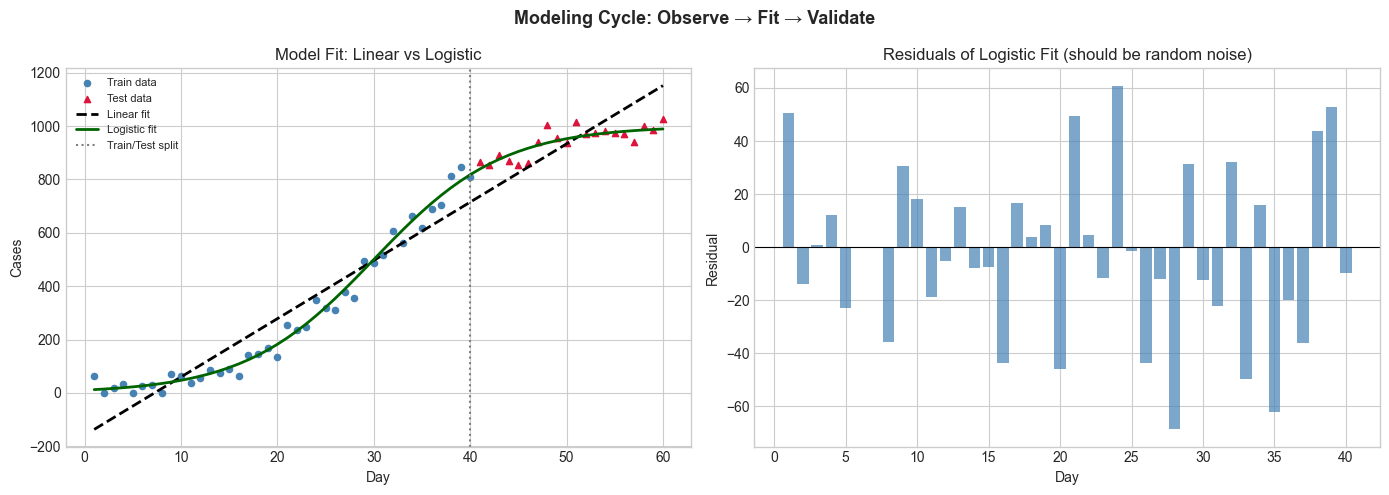

3. Visualization¶
# --- Visualization: The full modeling cycle on real-shaped data ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
np.random.seed(7)
# Generate data from a logistic process (unknown to the modeler)
t = np.arange(1, 61)
K, r, t0 = 1000, 0.15, 30
true_y = K / (1 + np.exp(-r * (t - t0)))
observed = true_y + np.random.normal(0, 30, len(t))
observed = np.maximum(0, observed)
# Modeler's hypothesis 1: linear
t_train, t_test = t[:40], t[40:]
y_train, y_test = observed[:40], observed[40:]
# Fit linear model to training data
A = np.column_stack([t_train, np.ones(len(t_train))])
m_lin, b_lin = np.linalg.lstsq(A, y_train, rcond=None)[0]
y_pred_lin = m_lin * t + b_lin
# Fit logistic by simple grid search (preview of ch072)
best_err, best_params = np.inf, None
for K_try in [800, 1000, 1200]:
for r_try in [0.1, 0.15, 0.2]:
for t0_try in [25, 30, 35]:
y_hat = K_try / (1 + np.exp(-r_try * (t_train - t0_try)))
err = np.mean((y_hat - y_train)**2)
if err < best_err:
best_err, best_params = err, (K_try, r_try, t0_try)
Kb, rb, t0b = best_params
y_pred_log = Kb / (1 + np.exp(-rb * (t - t0b)))
fig, axes = plt.subplots(1, 2, figsize=(14, 5))
ax = axes[0]
ax.scatter(t_train, y_train, color='steelblue', s=20, label='Train data')
ax.scatter(t_test, y_test, color='crimson', s=20, label='Test data', marker='^')
ax.plot(t, y_pred_lin, 'k--', linewidth=2, label=f'Linear fit')
ax.plot(t, y_pred_log, color='darkgreen', linewidth=2, label=f'Logistic fit')
ax.axvline(40, color='gray', linestyle=':', linewidth=1.5, label='Train/Test split')
ax.set_title('Model Fit: Linear vs Logistic'); ax.set_xlabel('Day'); ax.set_ylabel('Cases')
ax.legend(fontsize=8)
# Residuals for logistic model
residuals = y_train - Kb/(1+np.exp(-rb*(t_train - t0b)))
axes[1].bar(t_train, residuals, color='steelblue', alpha=0.7)
axes[1].axhline(0, color='black', linewidth=0.8)
axes[1].set_title('Residuals of Logistic Fit (should be random noise)')
axes[1].set_xlabel('Day'); axes[1].set_ylabel('Residual')
plt.suptitle('Modeling Cycle: Observe → Fit → Validate', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()
lin_test_err = np.sqrt(np.mean((y_pred_lin[40:] - y_test)**2))
log_test_err = np.sqrt(np.mean((y_pred_log[40:] - y_test)**2))
print(f"Linear model test RMSE: {lin_test_err:.1f}")
print(f"Logistic model test RMSE: {log_test_err:.1f}")
Linear model test RMSE: 87.4
Logistic model test RMSE: 30.7
5. Python Implementation¶
# --- Implementation: Modeling pipeline ---
import numpy as np
class SimpleFitter:
"""Fit and evaluate a parameterized model using grid search."""
def __init__(self, model_fn, param_grid):
self.model_fn = model_fn
self.param_grid = param_grid
self.best_params = None
self.best_mse = np.inf
def fit(self, x, y):
"""Grid search over param_grid to minimize MSE."""
import itertools
keys = list(self.param_grid.keys())
values = [self.param_grid[k] for k in keys]
for combo in itertools.product(*values):
params = dict(zip(keys, combo))
try:
y_hat = self.model_fn(x, **params)
mse = np.mean((y - y_hat)**2)
if mse < self.best_mse:
self.best_mse, self.best_params = mse, params
except (ValueError, RuntimeWarning, FloatingPointError):
continue
return self
def predict(self, x):
return self.model_fn(x, **self.best_params)
def score(self, x, y):
y_hat = self.predict(x)
ss_res = np.sum((y - y_hat)**2)
ss_tot = np.sum((y - y.mean())**2)
return 1 - ss_res / ss_tot # R²
# Use on growth data
np.random.seed(0)
t = np.linspace(1, 50, 50)
y_true = 500 / (1 + np.exp(-0.2*(t - 25)))
y_obs = y_true + np.random.normal(0, 15, 50)
fitter = SimpleFitter(
model_fn=lambda t, K, r, t0: K / (1 + np.exp(-r*(t - t0))),
param_grid={'K': [400, 500, 600], 'r': [0.15, 0.2, 0.25], 't0': [20, 25, 30]}
)
fitter.fit(t, y_obs)
print("Best params:", fitter.best_params)
print("R² score:", fitter.score(t, y_obs).round(4))Best params: {'K': 500, 'r': 0.2, 't0': 25}
R² score: 0.9919
6. Experiments¶
Experiment 1: Use the SimpleFitter on linear data with a logistic model. What happens? The logistic will try to fit a plateau where there is none — high residuals at the extremes.
Experiment 2: Vary the noise level (σ) from 5 to 100 and observe how the best fit degrades. At what noise level does model selection become unreliable?
7. Exercises¶
Easy 1. A population grows from 100 to 800 over 20 years. Which function family is most appropriate: linear, exponential, or logistic? Justify with one qualitative reason.
Easy 2. If residuals in a model show a clear wave pattern, what does this suggest about the model’s function family?
Medium 1. Implement a train-test split evaluator: given data, a model fn, and a split ratio, fit on train and compute RMSE on test. Apply to at least two model families on the same dataset.
Medium 2. Generate data from y = 3x² + noise. Fit linear, quadratic, and cubic models. Which has lowest training error? Which has lowest test error?
Hard. Implement AIC (Akaike Information Criterion) model comparison: AIC = 2k - 2·log(L), where k is the number of parameters and L is the likelihood (assume Gaussian errors). Compare linear, quadratic, and cubic fits using AIC.
9. Chapter Summary & Connections¶
Modeling cycle: observe → hypothesize family → fit → validate → refine
Interpolation is reliable; extrapolation requires trust in the model structure
Residuals should look like random noise — any pattern indicates model misspecification
RMSE, R², AIC are quantitative tools for comparing models
Forward connections:
ch072 (Fitting Simple Models) formalizes the parameter search
ch073 (Error and Residuals) analyzes what residual patterns tell us
ch287 (Model Evaluation) covers the full validation toolkit
