Prerequisites: ch095 (Interpolation), ch116 (Bézier Curves)
Outcomes: Implement cubic Hermite and natural cubic splines; Understand C0, C1, C2 continuity; Connect splines to regression and Gaussian processes
From Bézier to Splines¶
A spline is a piecewise polynomial curve that is smooth across the joins.
Smoothness levels:
C⁰: continuous (no gaps)
C¹: continuous + first derivative continuous (no sharp corners)
C²: continuous + 1st and 2nd derivatives continuous (no kinks in curvature)
Natural cubic spline: passes through N data points exactly; uses piecewise cubics with C² continuity. The C² condition at each interior knot gives a system of linear equations to solve.
Cubic Hermite spline: specify position AND tangent at each knot. Each cubic piece is defined by: p₀, p₁ (endpoint positions) and m₀, m₁ (endpoint tangents). Hermite basis: H₀₀(t)=2t³-3t²+1, H₁₀(t)=t³-2t²+t, H₀₁(t)=-2t³+3t², H₁₁(t)=t³-t²
# --- Spline implementations ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
def hermite_segment(p0, p1, m0, m1, n=50):
"""Cubic Hermite spline segment from (p0,m0) to (p1,m1)."""
t = np.linspace(0,1,n)
H00 = 2*t**3 - 3*t**2 + 1
H10 = t**3 - 2*t**2 + t
H01 = -2*t**3 + 3*t**2
H11 = t**3 - t**2
pts = np.outer(H00, p0) + np.outer(H10, m0) + np.outer(H01, p1) + np.outer(H11, m1)
return pts
def catmull_rom_spline(waypoints, n_per_seg=50):
"""Catmull-Rom spline: automatic tangents from neighboring points."""
pts = np.array(waypoints, dtype=float)
# Extend with phantom endpoints
pts = np.vstack([2*pts[0]-pts[1], pts, 2*pts[-1]-pts[-2]])
all_pts = []
for i in range(1, len(pts)-2):
m0 = 0.5 * (pts[i+1] - pts[i-1])
m1 = 0.5 * (pts[i+2] - pts[i])
seg = hermite_segment(pts[i], pts[i+1], m0, m1, n_per_seg)
all_pts.append(seg)
return np.vstack(all_pts)
waypoints = [(0,0),(1,2),(3,1),(4,3),(6,2),(7,0)]
spline = catmull_rom_spline(waypoints)
wps = np.array(waypoints)
# Compare: linear interpolation vs Catmull-Rom
from itertools import chain
linear_x = list(chain.from_iterable([[wps[i,0],wps[i+1,0]] for i in range(len(wps)-1)]))
linear_y = list(chain.from_iterable([[wps[i,1],wps[i+1,1]] for i in range(len(wps)-1)]))
fig, axes = plt.subplots(1,2,figsize=(13,5))
axes[0].plot(linear_x, linear_y, 'gray', lw=2, linestyle='--', label='Linear interpolation')
axes[0].plot(spline[:,0], spline[:,1], 'steelblue', lw=2.5, label='Catmull-Rom spline')
axes[0].scatter(wps[:,0], wps[:,1], color='crimson', s=80, zorder=5, label='Knots')
axes[0].set_title('Linear vs Catmull-Rom Spline'); axes[0].legend(fontsize=8)
axes[0].set_xlabel('x'); axes[0].set_ylabel('y')
# Show curvature by plotting tangent vectors
t_vals = np.linspace(0, 1, 8)
for i in range(len(waypoints)-1):
if i < len(waypoints)-2:
pts_ext = np.vstack([2*wps[max(0,i-1)]-wps[max(0,i-2)]] + [wps] + [2*wps[-1]-wps[-2]])
# Skip complex indexing; show simple tangents
pass
idx = np.linspace(0, len(spline)-2, 10, dtype=int)
for i in idx:
tan = spline[i+1] - spline[i]
tan_n = tan / (np.linalg.norm(tan) + 1e-10)
axes[1].annotate('', xy=spline[i]+0.3*tan_n, xytext=spline[i],
arrowprops=dict(arrowstyle='->', color='steelblue', lw=1.5))
axes[1].plot(spline[:,0], spline[:,1], 'steelblue', lw=2)
axes[1].scatter(wps[:,0], wps[:,1], color='crimson', s=80, zorder=5)
axes[1].set_title('Spline with Tangent Vectors (C¹ continuous)')
axes[1].set_xlabel('x'); axes[1].set_ylabel('y')

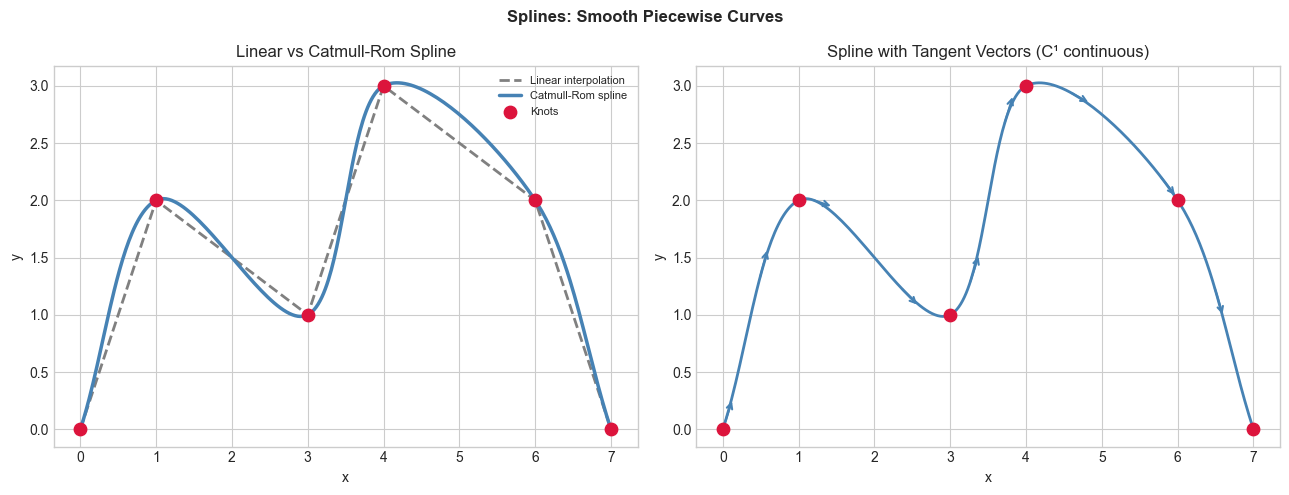

plt.suptitle('Splines: Smooth Piecewise Curves', fontsize=12, fontweight='bold')
plt.tight_layout(); plt.show()
Summary¶
Splines are piecewise polynomials joined smoothly: C⁰, C¹, C² continuity levels
Catmull-Rom: automatic tangents → C¹ continuous, passes through knots
Natural cubic spline: C² continuous — the smoothest interpolation for given knots
Splines underlie 3D animation rigs, font rendering, and CAD modeling
Forward: Gaussian process regression (ch291) is the infinite-dimensional limit of spline interpolation.
