Core Game Geometry¶
Games reduce to geometry:
Position: point (x, y)
Velocity: vector (vx, vy)
Update rule: p_new = p_old + v·dt
Collision: test whether two shapes overlap
The most common collision primitives:
Circle vs Circle: d(c1, c2) < r1 + r2
AABB vs AABB (axis-aligned bounding box): overlapping x and y ranges
Point in circle: d(p, center) < r
Point in AABB: xmin≤px≤xmax and ymin≤py≤ymax
# --- Game physics demo: bouncing circles ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
np.random.seed(42)
N_BALLS = 8
BOX = (0, 20, 0, 15) # xmin, xmax, ymin, ymax
positions = np.random.uniform([2,2],[18,13],(N_BALLS,2))
velocities = np.random.randn(N_BALLS, 2) * 3
radii = np.random.uniform(0.5, 1.5, N_BALLS)
colors = plt.cm.tab10(np.linspace(0,1,N_BALLS))
def bounce_step(pos, vel, radii, box, dt=0.05):
"""One physics step: move, bounce off walls, resolve ball collisions."""
pos = pos + vel * dt
xmin, xmax, ymin, ymax = box
# Wall bouncing
for i in range(len(pos)):
r = radii[i]
if pos[i,0] - r < xmin: pos[i,0] = xmin + r; vel[i,0] = abs(vel[i,0])
if pos[i,0] + r > xmax: pos[i,0] = xmax - r; vel[i,0] = -abs(vel[i,0])
if pos[i,1] - r < ymin: pos[i,1] = ymin + r; vel[i,1] = abs(vel[i,1])
if pos[i,1] + r > ymax: pos[i,1] = ymax - r; vel[i,1] = -abs(vel[i,1])
# Ball-ball collision (elastic)
for i in range(len(pos)):
for j in range(i+1, len(pos)):
diff = pos[j] - pos[i]
dist = np.linalg.norm(diff)
min_dist = radii[i] + radii[j]
if dist < min_dist and dist > 1e-10:
normal = diff / dist
# Separate overlapping balls
overlap = min_dist - dist
pos[i] -= 0.5 * overlap * normal
pos[j] += 0.5 * overlap * normal
# Exchange velocity components along normal
vi_n = np.dot(vel[i], normal)
vj_n = np.dot(vel[j], normal)
vel[i] += (vj_n - vi_n) * normal
vel[j] += (vi_n - vj_n) * normal
return pos, vel
# Simulate and plot snapshots
fig, axes = plt.subplots(1,4,figsize=(15,4))
pos, vel = positions.copy(), velocities.copy()
for ax, step in zip(axes, [0, 20, 60, 120]):
for _ in range(step if ax == axes[0] else 20):
pos, vel = bounce_step(pos, vel, radii, BOX)
ax.set_xlim(*BOX[:2]); ax.set_ylim(*BOX[2:]); ax.set_aspect('equal')
for i in range(N_BALLS):
circle = plt.Circle(pos[i], radii[i], color=colors[i], alpha=0.7)
ax.add_patch(circle)
ax.plot(*pos[i], '+', color='white', ms=5)
ax.set_title(f't={step} steps')
ax.set_xlabel('x'); ax.set_ylabel('y')

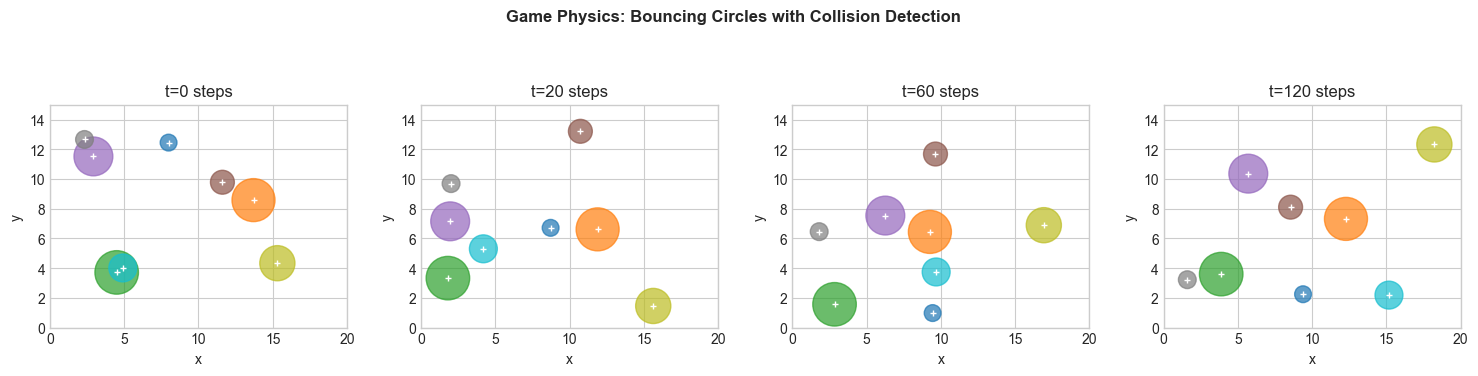

plt.suptitle('Game Physics: Bouncing Circles with Collision Detection', fontsize=12, fontweight='bold')
plt.tight_layout(); plt.show()
Spatial Partitioning¶
For N objects, checking all pairs is O(N²). Spatial partitioning reduces this:
Grid partitioning: divide space into cells; only check objects in neighboring cells. For uniform-radius objects: O(N) average-case collision detection.
Quadtree: recursively divide space into 4 quadrants; store objects at appropriate level. Used in: game engines, GIS systems, particle simulations.
For N=1000 objects, O(N²) = 500,000 checks; grid with c cells ≈ N·(9 checks each) = 9000 checks.
Summary¶
Game geometry: position=point, velocity=vector, update=point+vector*dt
Circle collision: d < r1+r2; AABB: check x and y ranges separately
Elastic collision: exchange normal velocity components
Spatial partitioning reduces O(N²) to O(N) with grids or quadtrees
