Chapter 173 — Singular Value Decomposition (SVD)

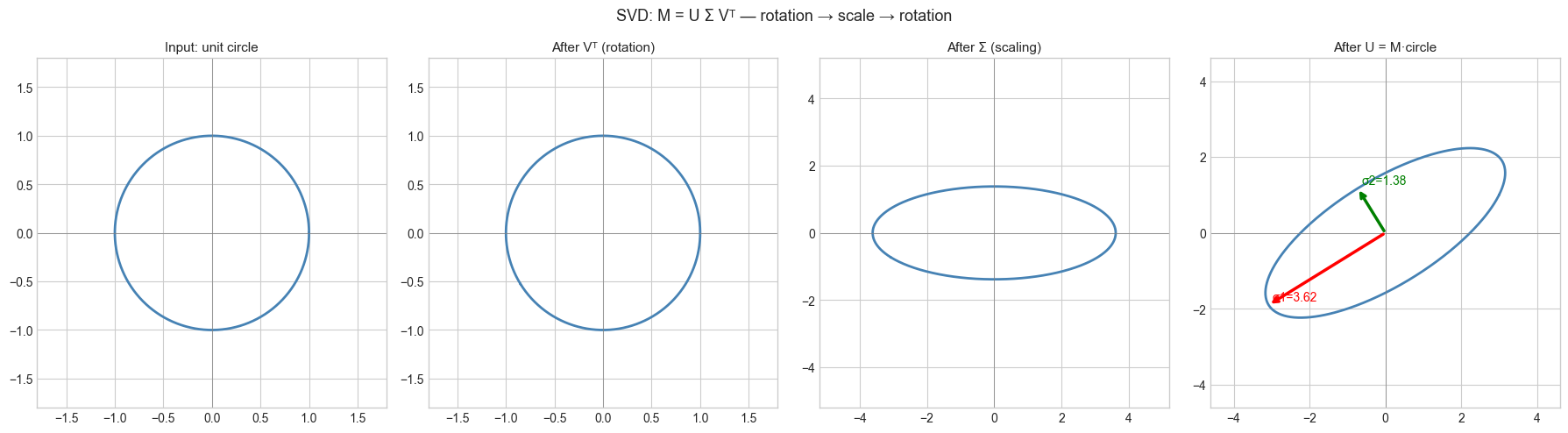

# --- Visualization: SVD transforms unit circle to ellipse via three steps ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

M = np.array([[3.0, 1.0],
              [1.0, 2.0]])

U, s, Vt = np.linalg.svd(M)
Sigma = np.diag(s)

# Unit circle
theta = np.linspace(0, 2*np.pi, 400)
circle = np.stack([np.cos(theta), np.sin(theta)])  # (2, 400)

# Three intermediate stages
stage1 = Vt @ circle          # Vᵀ: first rotation
stage2 = Sigma @ stage1       # Σ: scaling
stage3 = U @ stage2           # U: second rotation = M·circle

fig, axes = plt.subplots(1, 4, figsize=(18, 5))
stages = [circle, stage1, stage2, stage3]
titles = ['Input: unit circle', 'After Vᵀ (rotation)', 'After Σ (scaling)', 'After U = M·circle']

for ax, data, title in zip(axes, stages, titles):
    ax.plot(data[0], data[1], 'steelblue', lw=2)
    lim = max(abs(data.max()), abs(data.min())) * 1.3 + 0.5
    ax.set_xlim(-lim, lim); ax.set_ylim(-lim, lim)
    ax.set_aspect('equal')
    ax.axhline(0, color='gray', lw=0.5); ax.axvline(0, color='gray', lw=0.5)
    ax.set_title(title, fontsize=11)

# Add singular vectors to final plot
for i in range(2):
    axes[3].annotate('', xy=U[:, i]*s[i], xytext=(0, 0),
                     arrowprops=dict(arrowstyle='->', color=['red','green'][i], lw=2.5))
    axes[3].text(U[0,i]*s[i]+.1, U[1,i]*s[i]+.1,
                 f'σ{i+1}={s[i]:.2f}', color=['red','green'][i], fontsize=10)

plt.suptitle('SVD: M = U Σ Vᵀ — rotation → scale → rotation', fontsize=13)
plt.tight_layout()
plt.show()
print(f"Singular values: {s}")
print(f"Rank of M: {np.linalg.matrix_rank(M)}")

# --- Implementation: SVD from scratch via eigendecomposition of M^T M ---
import numpy as np

def svd_via_eig(M):
    """
    Compute SVD of matrix M using eigendecomposition of M^T M.

    Args:
        M: (m, n) numpy array

    Returns:
        U: (m, m) left singular vectors
        s: (min(m,n),) singular values in decreasing order
        Vt: (n, n) right singular vectors transposed
    """
    # Step 1: Eigendecompose M^T M
    MtM = M.T @ M
    eigvals, V = np.linalg.eigh(MtM)  # eigh: symmetric, real eigenvalues

    # Sort in decreasing order
    idx = np.argsort(eigvals)[::-1]
    eigvals = eigvals[idx]
    V = V[:, idx]

    # Step 2: Singular values = sqrt(eigenvalues), clip numerical negatives
    s = np.sqrt(np.maximum(eigvals, 0))

    # Step 3: Left singular vectors U = M V / sigma
    m = M.shape[0]
    U = np.zeros((m, m))
    r = np.sum(s > 1e-10)  # numerical rank
    for i in range(r):
        U[:, i] = M @ V[:, i] / s[i]

    # Complete U with orthonormal basis for null space if needed
    if r < m:
        # Gram-Schmidt to complete the basis
        for i in range(r, m):
            v = np.random.randn(m)
            for j in range(i):
                v -= (v @ U[:, j]) * U[:, j]
            U[:, i] = v / np.linalg.norm(v)

    return U, s[:min(m, M.shape[1])], V.T


# Test
M = np.array([[3.0, 2.0, 1.0],
              [1.0, 3.0, 2.0],
              [2.0, 1.0, 4.0]])

U_ours, s_ours, Vt_ours = svd_via_eig(M)
U_np, s_np, Vt_np = np.linalg.svd(M)

print("Our singular values: ", s_ours)
print("NumPy singular values:", s_np)
print(f"Max difference: {np.max(np.abs(s_ours - s_np)):.2e}")

# Reconstruction
M_rec = U_ours @ np.diag(np.pad(s_ours, (0, M.shape[0]-len(s_ours)))) @ Vt_ours
print(f"Reconstruction error: {np.max(np.abs(M - M_rec)):.2e}")

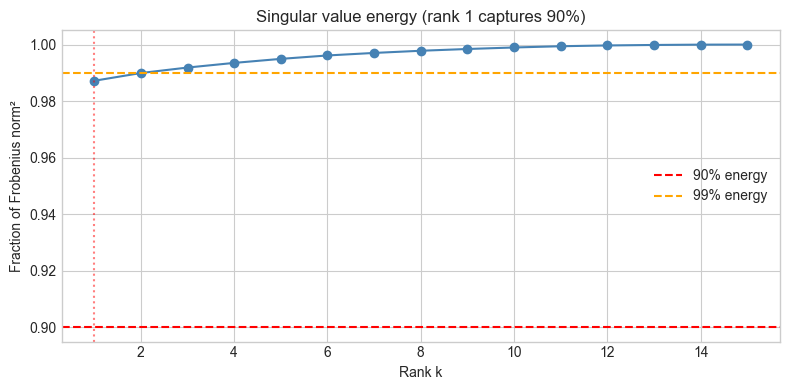

# --- Truncated SVD: best low-rank approximation ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

def truncated_svd(M, k):
    """
    Best rank-k approximation to M via truncated SVD.

    Returns:
        M_k: (m, n) rank-k approximation
        fraction_explained: fraction of Frobenius norm captured
    """
    U, s, Vt = np.linalg.svd(M, full_matrices=False)
    M_k = U[:, :k] @ np.diag(s[:k]) @ Vt[:k, :]
    frac = np.sum(s[:k]**2) / np.sum(s**2)
    return M_k, frac

# Random matrix to demonstrate energy captured
np.random.seed(0)
M = np.random.randn(20, 15) + np.outer(np.ones(20), np.arange(15))  # low-rank signal + noise
_, s, _ = np.linalg.svd(M)

ranks = list(range(1, min(M.shape)+1))
energy = [np.sum(s[:k]**2)/np.sum(s**2) for k in ranks]

plt.figure(figsize=(8, 4))
plt.plot(ranks, energy, 'o-', color='steelblue')
plt.axhline(0.9, color='red', ls='--', label='90% energy')
plt.axhline(0.99, color='orange', ls='--', label='99% energy')
k90 = next(k for k, e in zip(ranks, energy) if e >= 0.9)
plt.axvline(k90, color='red', ls=':', alpha=0.5)
plt.xlabel('Rank k')
plt.ylabel('Fraction of Frobenius norm²')
plt.title(f'Singular value energy (rank {k90} captures 90%)')
plt.legend()
plt.tight_layout()
plt.show()
print(f"Singular values: {s[:8].round(2)} ...")

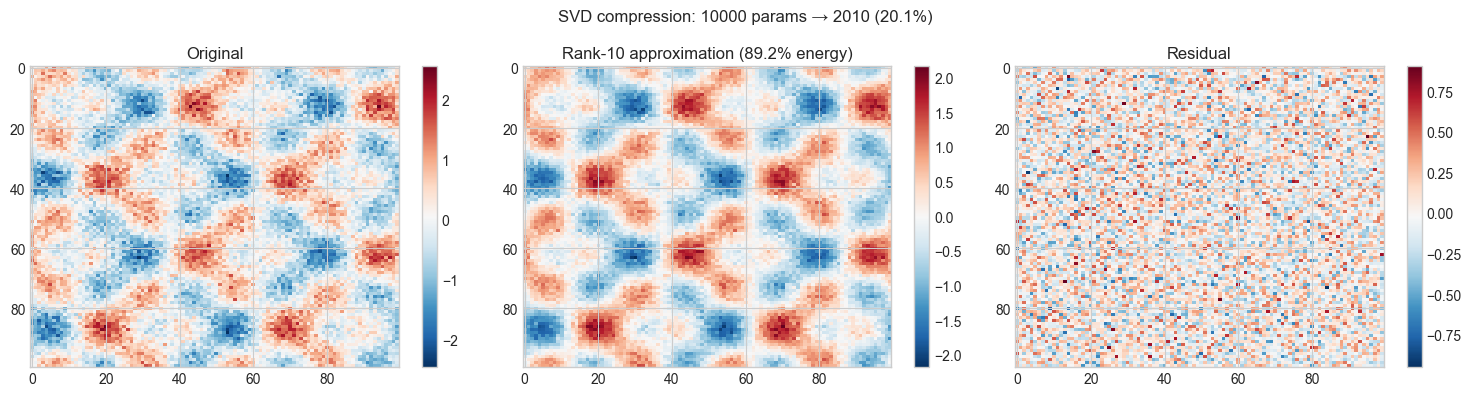

# --- Experiment 1: SVD compression of a synthetic image ---
# Hypothesis: A rank-k truncated SVD captures the main structures at much smaller storage
# Try changing: K_RANK

import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

K_RANK = 10  # try: 1, 5, 10, 30, 50

# Synthetic "image": smooth structure + noise
np.random.seed(1)
x = np.linspace(0, 4*np.pi, 100)
signal = np.outer(np.sin(x), np.cos(x)) + np.outer(np.cos(2*x), np.sin(2*x))
img = signal + 0.3 * np.random.randn(*signal.shape)

U, s, Vt = np.linalg.svd(img, full_matrices=False)
img_k = U[:, :K_RANK] @ np.diag(s[:K_RANK]) @ Vt[:K_RANK, :]

frac_energy = np.sum(s[:K_RANK]**2) / np.sum(s**2)
original_params = img.shape[0] * img.shape[1]
compressed_params = K_RANK * (img.shape[0] + img.shape[1] + 1)

fig, axes = plt.subplots(1, 3, figsize=(15, 4))
for ax, data, title in zip(axes,
                            [img, img_k, img - img_k],
                            ['Original', f'Rank-{K_RANK} approximation ({frac_energy:.1%} energy)', 'Residual']):
    im = ax.imshow(data, cmap='RdBu_r', aspect='auto')
    ax.set_title(title)
    plt.colorbar(im, ax=ax)

plt.suptitle(f'SVD compression: {original_params} params → {compressed_params} ({compressed_params/original_params:.1%})',
             fontsize=12)
plt.tight_layout()
plt.show()

# --- Experiment 2: Pseudoinverse via SVD ---
# Hypothesis: The Moore-Penrose pseudoinverse solves Ax=b in a least-squares sense
#             even when A is non-square or singular
# Try changing: make A fat (more columns than rows) or singular

import numpy as np

# Overdetermined system (more equations than unknowns)
np.random.seed(42)
A = np.random.randn(10, 4)  # 10 equations, 4 unknowns
x_true = np.array([1.0, 2.0, -1.0, 0.5])
b = A @ x_true + 0.1 * np.random.randn(10)  # noisy observations

# SVD-based pseudoinverse: A⁺ = V Σ⁺ Uᵀ
U, s, Vt = np.linalg.svd(A, full_matrices=False)
TOL = 1e-10
s_inv = np.where(s > TOL, 1.0/s, 0.0)  # invert nonzero singular values
A_pinv = Vt.T @ np.diag(s_inv) @ U.T

x_svd = A_pinv @ b
x_lstsq = np.linalg.lstsq(A, b, rcond=None)[0]

print(f"True x:       {x_true}")
print(f"SVD solution: {x_svd.round(4)}")
print(f"lstsq:        {x_lstsq.round(4)}")
print(f"Residual (SVD): {np.linalg.norm(A @ x_svd - b):.6f}")

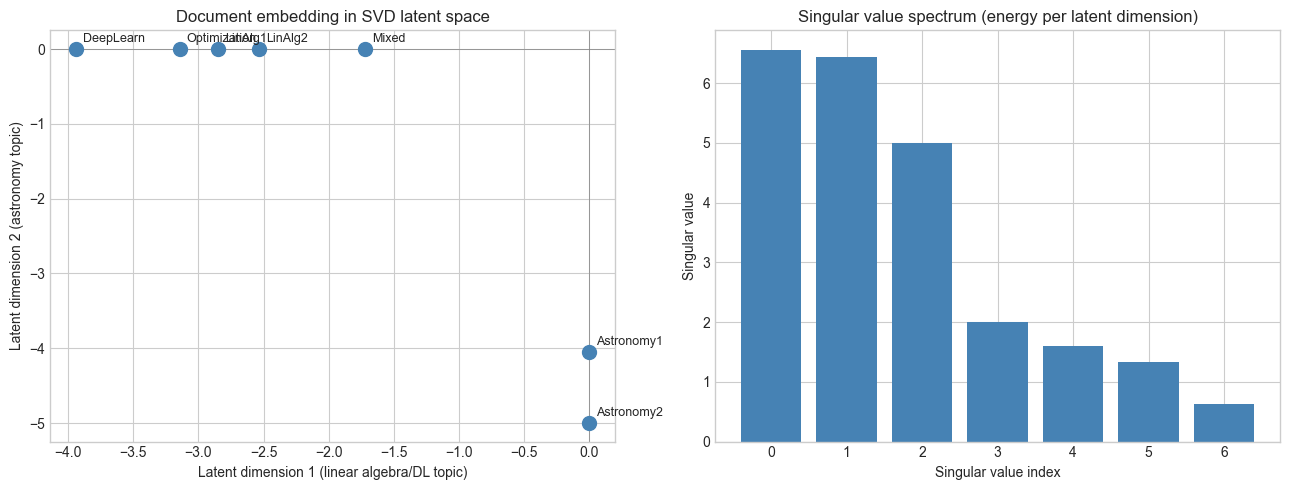

# --- Mini Project: Document similarity via truncated SVD ---
# Problem: Given a term-document matrix, use SVD to find latent topics
#          and measure document similarity in the reduced space.
# Dataset: Manually constructed 7-document, 10-term example.

import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

# Terms (rows) x Documents (columns)
terms = ['matrix', 'vector', 'eigenvalue', 'neural', 'network', 'gradient',
         'star', 'galaxy', 'telescope', 'planet']
docs = ['LinAlg1', 'LinAlg2', 'DeepLearn', 'Optimization', 'Astronomy1', 'Astronomy2', 'Mixed']

# Term-document matrix (counts)
TD = np.array([
    # LA1  LA2  DL   Opt  Ast1 Ast2 Mix
    [3,    2,   1,   0,   0,   0,   1],  # matrix
    [2,    3,   0,   1,   0,   0,   1],  # vector
    [1,    2,   0,   0,   0,   0,   0],  # eigenvalue
    [0,    0,   3,   2,   0,   0,   1],  # neural
    [0,    0,   3,   1,   0,   0,   1],  # network
    [1,    0,   2,   3,   0,   0,   0],  # gradient
    [0,    0,   0,   0,   3,   2,   0],  # star
    [0,    0,   0,   0,   2,   3,   0],  # galaxy
    [0,    0,   0,   0,   2,   2,   0],  # telescope
    [0,    0,   0,   0,   1,   3,   0],  # planet
], dtype=float)

# Truncated SVD with k=2 topics
K = 2
U, s, Vt = np.linalg.svd(TD, full_matrices=False)
# Document coordinates in latent space
doc_coords = np.diag(s[:K]) @ Vt[:K, :]  # (K, n_docs)

fig, axes = plt.subplots(1, 2, figsize=(13, 5))

# Plot documents in 2D latent space
ax = axes[0]
ax.scatter(doc_coords[0], doc_coords[1], s=100, color='steelblue', zorder=3)
for i, doc in enumerate(docs):
    ax.annotate(doc, (doc_coords[0, i], doc_coords[1, i]),
                textcoords='offset points', xytext=(5, 5), fontsize=9)
ax.set_xlabel('Latent dimension 1 (linear algebra/DL topic)')
ax.set_ylabel('Latent dimension 2 (astronomy topic)')
ax.set_title('Document embedding in SVD latent space')
ax.axhline(0, color='gray', lw=0.5)
ax.axvline(0, color='gray', lw=0.5)

# Singular value spectrum
axes[1].bar(range(len(s)), s, color='steelblue')
axes[1].set_xlabel('Singular value index')
axes[1].set_ylabel('Singular value')
axes[1].set_title('Singular value spectrum (energy per latent dimension)')

plt.tight_layout()
plt.show()

# Compute cosine similarity between Mixed doc and all others
mixed = doc_coords[:, 6]
sims = []
for i, doc in enumerate(docs[:-1]):
    d = doc_coords[:, i]
    cos_sim = (mixed @ d) / (np.linalg.norm(mixed) * np.linalg.norm(d))
    sims.append((doc, cos_sim))
sims.sort(key=lambda x: -x[1])
print("\nMost similar documents to 'Mixed':")
for doc, sim in sims:
    print(f"  {doc:15s}: cosine similarity = {sim:.4f}")
