Chapter 174 — PCA Intuition

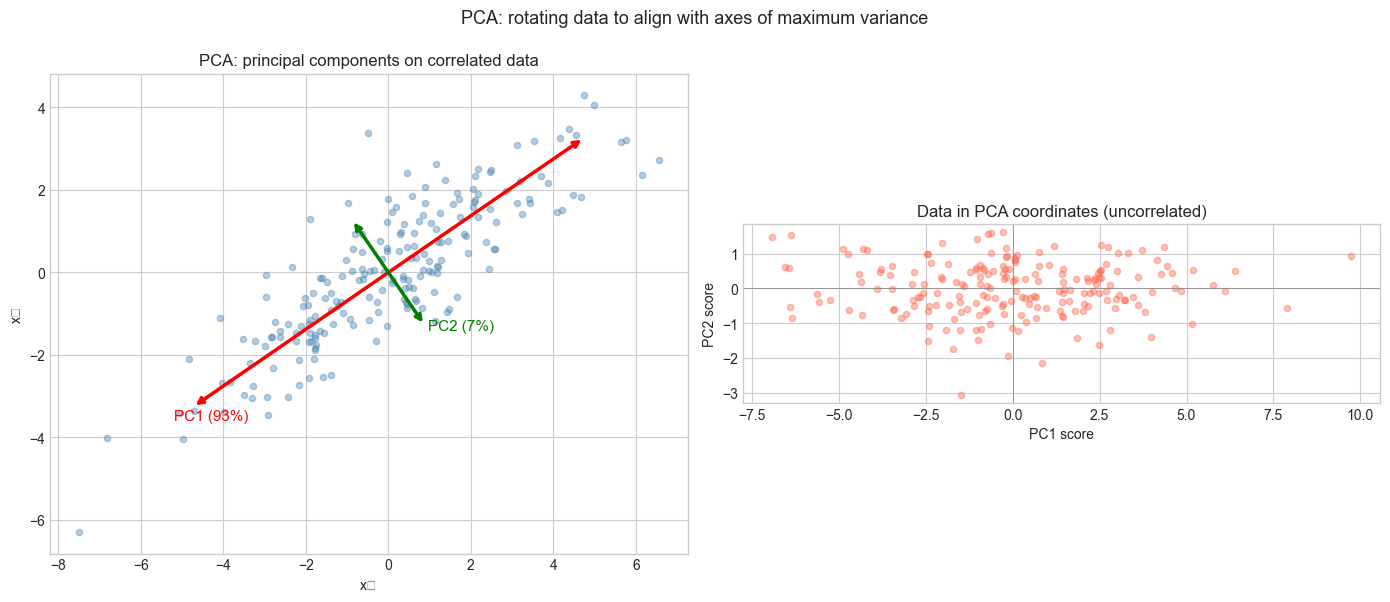

# --- Visualization: PCA finds the axes of the data ellipse ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

np.random.seed(42)

# Generate correlated 2D data
n = 200
theta_data = np.radians(35)
R = np.array([[np.cos(theta_data), -np.sin(theta_data)],
              [np.sin(theta_data),  np.cos(theta_data)]])
raw = np.random.randn(n, 2) * np.array([3.0, 0.8])
X = raw @ R.T  # rotate to create correlation

# Center
X_centered = X - X.mean(axis=0)

# PCA via SVD
U, s, Vt = np.linalg.svd(X_centered, full_matrices=False)
components = Vt  # rows are principal components
explained_var = s**2 / (n - 1)
total_var = explained_var.sum()

fig, axes = plt.subplots(1, 2, figsize=(14, 6))

# Original data + PCA directions
ax = axes[0]
ax.scatter(X_centered[:, 0], X_centered[:, 1], alpha=0.4, s=20, color='steelblue')
for i, (comp, var) in enumerate(zip(components, explained_var)):
    scale = np.sqrt(var) * 2
    ax.annotate('', xy=comp*scale, xytext=-comp*scale,
                arrowprops=dict(arrowstyle='<->', color=['red','green'][i], lw=2.5))
    ax.text(comp[0]*scale*1.1, comp[1]*scale*1.1,
            f'PC{i+1} ({var/total_var:.0%})', color=['red','green'][i], fontsize=11)
ax.set_aspect('equal')
ax.set_xlabel('x₁'); ax.set_ylabel('x₂')
ax.set_title('PCA: principal components on correlated data')

# Projected data
X_proj = X_centered @ Vt.T  # project onto PCA coordinates
ax2 = axes[1]
ax2.scatter(X_proj[:, 0], X_proj[:, 1], alpha=0.4, s=20, color='tomato')
ax2.axhline(0, color='gray', lw=0.5); ax2.axvline(0, color='gray', lw=0.5)
ax2.set_aspect('equal')
ax2.set_xlabel('PC1 score'); ax2.set_ylabel('PC2 score')
ax2.set_title('Data in PCA coordinates (uncorrelated)')

plt.suptitle('PCA: rotating data to align with axes of maximum variance', fontsize=13)
plt.tight_layout()
plt.show()
print(f"Variance explained: PC1={explained_var[0]/total_var:.1%}, PC2={explained_var[1]/total_var:.1%}")

# --- Implementation: PCA from scratch ---
import numpy as np

class PCA:
    """
    Principal Component Analysis via SVD.

    Attributes:
        components_: (n_components, n_features) — principal component directions
        explained_variance_: (n_components,) — variance along each PC
        explained_variance_ratio_: (n_components,) — fraction of total variance
        mean_: (n_features,) — feature means
    """

    def __init__(self, n_components=None):
        self.n_components = n_components

    def fit(self, X):
        """
        Compute principal components from data X.

        Args:
            X: (n_samples, n_features) data matrix
        """
        n, p = X.shape
        self.mean_ = X.mean(axis=0)
        X_c = X - self.mean_

        # SVD of centered data
        _, s, Vt = np.linalg.svd(X_c, full_matrices=False)

        k = self.n_components or p
        self.components_ = Vt[:k]
        self.explained_variance_ = s[:k]**2 / (n - 1)
        total_var = np.sum(s**2) / (n - 1)
        self.explained_variance_ratio_ = self.explained_variance_ / total_var
        return self

    def transform(self, X):
        """Project data onto principal components."""
        return (X - self.mean_) @ self.components_.T

    def inverse_transform(self, Z):
        """Reconstruct data from PCA coordinates."""
        return Z @ self.components_ + self.mean_

    def fit_transform(self, X):
        return self.fit(X).transform(X)


# Test on correlated data
np.random.seed(7)
n = 300
X = np.random.randn(n, 4) @ np.array([[1, 0.8, 0.5, 0.1],
                                        [0, 0.6, 0.3, 0.9],
                                        [0, 0,   0.7, 0.2],
                                        [0, 0,   0,   0.4]])

pca = PCA(n_components=2)
Z = pca.fit_transform(X)
X_rec = pca.inverse_transform(Z)

print("Explained variance ratio:", pca.explained_variance_ratio_.round(4))
print(f"Total variance captured: {pca.explained_variance_ratio_.sum():.1%}")
print(f"Reconstruction error: {np.mean((X - X_rec)**2):.6f}")
print(f"Original shape: {X.shape}, Compressed shape: {Z.shape}")

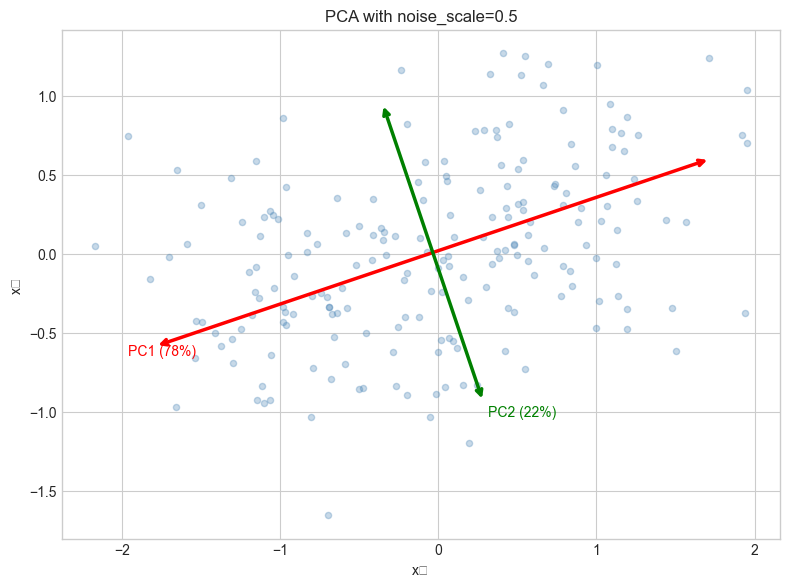

# --- Experiment 1: PCA on structured noise vs signal ---
# Hypothesis: When signal-to-noise ratio is low, PCA may capture noise first
# Try changing: NOISE_SCALE

import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

NOISE_SCALE = 0.5  # try: 0.1, 0.5, 1.0, 3.0
np.random.seed(0)

n = 200
# Signal: correlated along first axis
t = np.linspace(0, 2*np.pi, n)
signal = np.stack([np.sin(t), 0.3 * np.sin(t)], axis=1)
noise = NOISE_SCALE * np.random.randn(n, 2)
X = signal + noise

pca = PCA(n_components=2)
pca.fit(X)

fig, ax = plt.subplots(figsize=(8, 6))
ax.scatter(X[:, 0], X[:, 1], alpha=0.3, s=20, color='steelblue', label='Data')
for i, comp in enumerate(pca.components_):
    scale = np.sqrt(pca.explained_variance_[i]) * 2
    ax.annotate('', xy=pca.mean_ + comp*scale, xytext=pca.mean_ - comp*scale,
                arrowprops=dict(arrowstyle='<->', color=['red','green'][i], lw=2.5))
    ax.text(*(pca.mean_ + comp*scale*1.1),
            f'PC{i+1} ({pca.explained_variance_ratio_[i]:.0%})',
            color=['red','green'][i], fontsize=10)
ax.set_aspect('equal')
ax.set_title(f'PCA with noise_scale={NOISE_SCALE}')
ax.set_xlabel('x₁'); ax.set_ylabel('x₂')
plt.tight_layout()
plt.show()

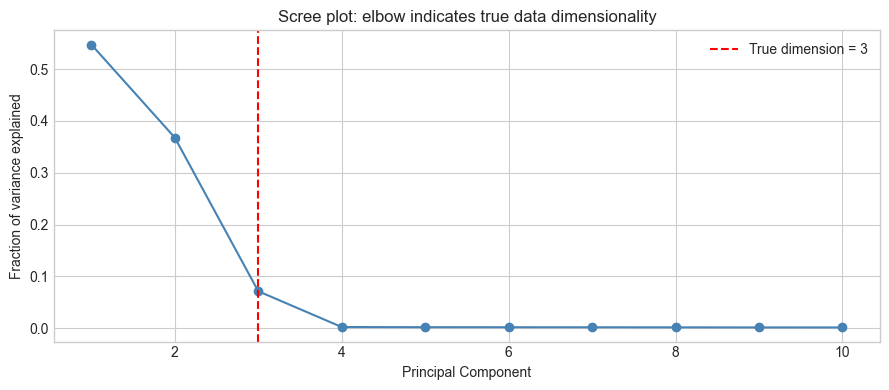

# --- Experiment 2: Scree plot for choosing number of components ---
# Hypothesis: The "elbow" in the scree plot indicates the true data dimensionality
# Try changing: TRUE_DIM

import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

TRUE_DIM = 3   # try: 1, 2, 3, 5
P_TOTAL = 10   # total features
np.random.seed(42)

# Data lives in TRUE_DIM dimensions, embedded in P_TOTAL-dim space
Z_true = np.random.randn(300, TRUE_DIM)
W = np.random.randn(TRUE_DIM, P_TOTAL)
X = Z_true @ W + 0.2 * np.random.randn(300, P_TOTAL)

pca = PCA()
pca.fit(X)

plt.figure(figsize=(9, 4))
plt.plot(range(1, P_TOTAL+1), pca.explained_variance_ratio_, 'o-', color='steelblue')
plt.axvline(TRUE_DIM, color='red', ls='--', label=f'True dimension = {TRUE_DIM}')
plt.xlabel('Principal Component')
plt.ylabel('Fraction of variance explained')
plt.title('Scree plot: elbow indicates true data dimensionality')
plt.legend()
plt.tight_layout()
plt.show()

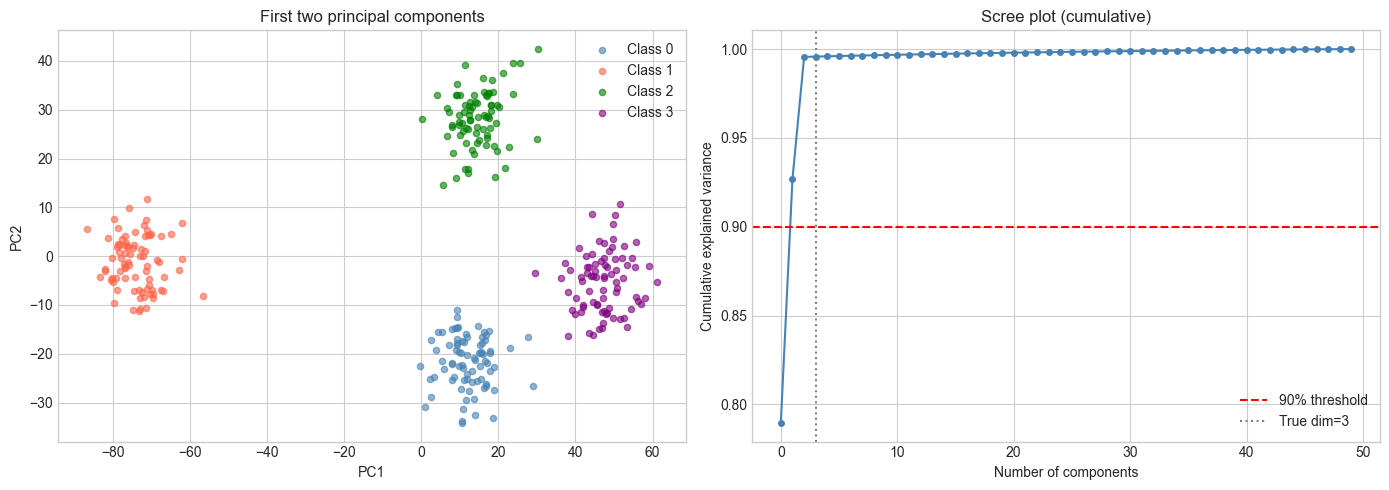

# --- Mini Project: Explore PCA on structured synthetic high-dim data ---
# Problem: A dataset has 50 features but only 3 meaningful dimensions.
#          Use PCA to recover the latent structure and visualize it.

import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')

np.random.seed(0)
N_CLASSES = 4
N_PER_CLASS = 80
N_FEATURES = 50
LATENT_DIM = 3

# Generate: each class is a Gaussian cloud in latent space
class_centers = np.random.randn(N_CLASSES, LATENT_DIM) * 5
W = np.random.randn(LATENT_DIM, N_FEATURES)  # projection to high-dim

X_list, y_list = [], []
for c in range(N_CLASSES):
    Z = class_centers[c] + np.random.randn(N_PER_CLASS, LATENT_DIM) * 0.8
    X_list.append(Z @ W + 0.5 * np.random.randn(N_PER_CLASS, N_FEATURES))
    y_list.append(np.full(N_PER_CLASS, c))

X = np.vstack(X_list)
y = np.concatenate(y_list)

# Apply PCA
pca = PCA(n_components=3)
Z_pca = pca.fit_transform(X)

print(f"Explained variance ratio: {pca.explained_variance_ratio_.round(3)}")
print(f"Top 3 PCs capture: {pca.explained_variance_ratio_.sum():.1%} of variance")

fig = plt.figure(figsize=(14, 5))

# 2D projection
ax1 = fig.add_subplot(121)
colors = ['steelblue', 'tomato', 'green', 'purple']
for c in range(N_CLASSES):
    mask = y == c
    ax1.scatter(Z_pca[mask, 0], Z_pca[mask, 1], s=20, alpha=0.6,
               color=colors[c], label=f'Class {c}')
ax1.set_xlabel('PC1'); ax1.set_ylabel('PC2')
ax1.set_title('First two principal components')
ax1.legend()

# Scree plot
pca_full = PCA()
pca_full.fit(X)
ax2 = fig.add_subplot(122)
cum_var = np.cumsum(pca_full.explained_variance_ratio_)
ax2.plot(cum_var, 'o-', color='steelblue', markersize=4)
ax2.axhline(0.9, color='red', ls='--', label='90% threshold')
ax2.axvline(LATENT_DIM, color='gray', ls=':', label=f'True dim={LATENT_DIM}')
ax2.set_xlabel('Number of components')
ax2.set_ylabel('Cumulative explained variance')
ax2.set_title('Scree plot (cumulative)')
ax2.legend()

plt.tight_layout()
plt.show()
