Chapter 13 — Truth Tables and Logical Reasoning

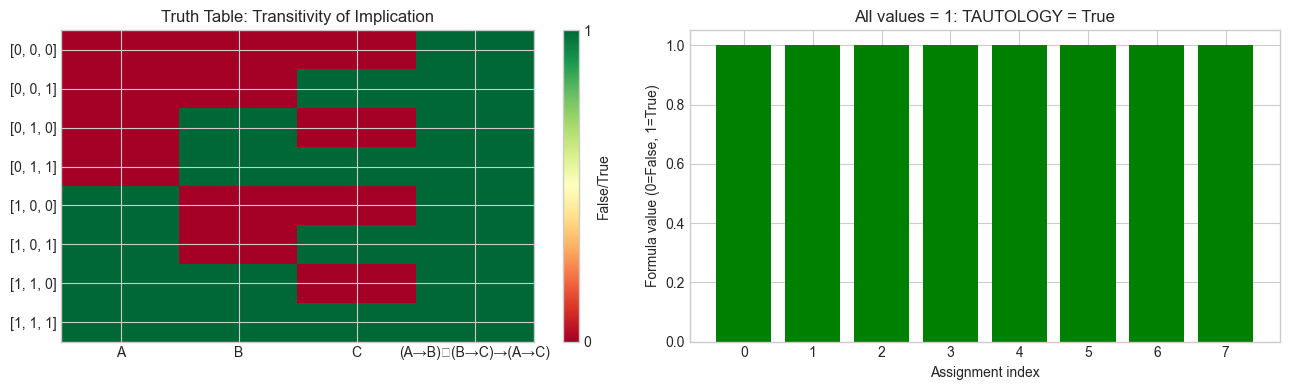

# --- Visualization: Truth table as heatmap ---
import numpy as np
import matplotlib.pyplot as plt
from itertools import product
plt.style.use('seaborn-v0_8-whitegrid')

def truth_table_matrix(formula, var_names):
    """Build truth table as a numpy matrix for visualization."""
    n = len(var_names)
    assignments = list(product([False, True], repeat=n))
    results = []
    for assign in assignments:
        env = dict(zip(var_names, assign))
        val = formula(**env)
        results.append(list(assign) + [val])
    return np.array(results, dtype=int), assignments

# Formula: (A → B) ∧ (B → C) → (A → C)  [transitivity of implication — tautology]
def transitivity(A, B, C):
    imp_ab = (not A) or B
    imp_bc = (not B) or C
    imp_ac = (not A) or C
    return not (imp_ab and imp_bc) or imp_ac

matrix, assignments = truth_table_matrix(transitivity, ['A','B','C'])

fig, axes = plt.subplots(1, 2, figsize=(13, 4))

# Left: heatmap
im = axes[0].imshow(matrix, cmap='RdYlGn', aspect='auto', vmin=0, vmax=1)
axes[0].set_xticks(range(4))
axes[0].set_xticklabels(['A','B','C','(A→B)∧(B→C)→(A→C)'])
axes[0].set_yticks(range(len(assignments)))
axes[0].set_yticklabels([str([int(a) for a in assign]) for assign in assignments])
axes[0].set_title('Truth Table: Transitivity of Implication')
plt.colorbar(im, ax=axes[0], ticks=[0,1], label='False/True')

# Right: just the formula column to see if it's a tautology
formula_col = matrix[:, -1]
axes[1].bar(range(len(formula_col)), formula_col, color=['green' if v else 'red' for v in formula_col])
axes[1].set_xlabel('Assignment index')
axes[1].set_ylabel('Formula value (0=False, 1=True)')
axes[1].set_title(f'All values = 1: TAUTOLOGY = {bool(formula_col.all())}')

plt.tight_layout()
plt.show()

print(f"Formula is a tautology: {bool(formula_col.all())}")
print("(A→B) ∧ (B→C) → (A→C) is always true — implication is transitive.")

# --- Implementation: Complete logical reasoning engine ---
from itertools import product

class LogicEngine:
    """
    Truth-table-based propositional logic engine.
    Answers: valid? satisfiable? entails?
    """
    def __init__(self, variables):
        self.variables = variables
        self.assignments = list(product([False, True], repeat=len(variables)))

    def evaluate(self, formula, assignment):
        """Evaluate formula (a Python callable) under given assignment tuple."""
        env = dict(zip(self.variables, assignment))
        return formula(**env)

    def is_valid(self, formula):
        """True iff formula is true under every assignment (tautology)."""
        return all(self.evaluate(formula, a) for a in self.assignments)

    def is_satisfiable(self, formula):
        """True iff some assignment satisfies the formula."""
        return any(self.evaluate(formula, a) for a in self.assignments)

    def satisfying_assignments(self, formula):
        """Return all assignments that satisfy the formula."""
        return [a for a in self.assignments if self.evaluate(formula, a)]

    def entails(self, premises, conclusion):
        """
        True iff every assignment satisfying all premises also satisfies conclusion.
        Equivalent to: (conjunction of premises) → conclusion is a tautology.
        """
        def combined(**env):
            return not all(p(**env) for p in premises) or conclusion(**env)
        return self.is_valid(combined)

eng = LogicEngine(['A', 'B', 'C'])

tests = [
    ('A ∨ ¬A (tautology)',         lambda A,B,C: A or not A,            'valid'),
    ('A ∧ ¬A (contradiction)',     lambda A,B,C: A and not A,           'unsat'),
    ('A ∧ B (satisfiable)',        lambda A,B,C: A and B,               'sat'),
    ('(A→B)∧(B→C)→(A→C)',         lambda A,B,C: not((not A or B) and (not B or C)) or (not A or C), 'valid'),
]

print('Logical analysis:')
for name, formula, expected in tests:
    valid = eng.is_valid(formula)
    sat   = eng.is_satisfiable(formula)
    status = 'TAUTOLOGY' if valid else ('UNSATISFIABLE' if not sat else 'SATISFIABLE')
    print(f'  {name}')
    print(f'    Status: {status}  (expected: {expected})')
    if sat and not valid:
        sats = eng.satisfying_assignments(formula)
        print(f'    Satisfying assignments: {len(sats)}/8')

print()
print('Entailment test:')
print('  Premises: {A→B, A}  Conclusion: B  (Modus Ponens)')
entails = eng.entails(
    premises=[lambda A,B,C: (not A) or B,
              lambda A,B,C: A],
    conclusion=lambda A,B,C: B
)
print(f'  Entails: {entails}  (expected: True)')

# --- Experiment: Size limits of truth tables ---
import numpy as np
import matplotlib.pyplot as plt
import time
plt.style.use('seaborn-v0_8-whitegrid')

N_RANGE = range(1, 22)
times = []
for n in N_RANGE:
    t0 = time.perf_counter()
    count = sum(1 for _ in product([False, True], repeat=n))  # just enumerate
    times.append(time.perf_counter() - t0)

fig, ax = plt.subplots(figsize=(10, 4))
ax.semilogy(list(N_RANGE), times, 'o-', linewidth=2)
ax.axhline(1.0, color='red', linestyle='--', label='1 second threshold')
ax.set_xlabel('Number of variables n')
ax.set_ylabel('Time to enumerate 2ⁿ assignments (seconds, log scale)')
ax.set_title('Truth Table Size vs Variables: Exponential Growth')
ax.legend()
plt.tight_layout()
plt.show()

# Find crossover
crossover = next((n for n, t in zip(N_RANGE, times) if t > 1.0), None)
if crossover:
    print(f'Truth table becomes > 1 second at n = {crossover} variables ({2**crossover:,} assignments)')
else:
    print('Tested up to n=21 — all under 1 second on this machine')
print('For n=30: 2^30 = 1,073,741,824 assignments — impractical by enumeration')

# --- Mini Project: Logical puzzle solver ---
# Encode a logic puzzle as propositional formulas and solve via truth tables.

# Puzzle: Three people (Alice, Bob, Carol) each made one statement.
# Exactly one of them is lying. Who is lying?
# Alice: 'Bob is honest.'
# Bob:   'Carol is lying.'
# Carol: 'Alice and Bob are both honest.'
# Variables: H_A, H_B, H_C = each person is honest (True) or lying (False)

from itertools import product

solutions = []
for H_A, H_B, H_C in product([False, True], repeat=3):
    # Alice's statement ('Bob is honest') is true iff H_A (Alice is honest)
    alice_stmt = H_B
    alice_consistent = (H_A == alice_stmt)  # honest person makes true statements

    # Bob's statement ('Carol is lying') is: not H_C
    bob_stmt = not H_C
    bob_consistent = (H_B == bob_stmt)

    # Carol's statement ('Alice and Bob are both honest'): H_A and H_B
    carol_stmt = H_A and H_B
    carol_consistent = (H_C == carol_stmt)

    # Constraint: exactly one liar
    exactly_one_liar = (sum([not H_A, not H_B, not H_C]) == 1)

    if alice_consistent and bob_consistent and carol_consistent and exactly_one_liar:
        solutions.append({'Alice': H_A, 'Bob': H_B, 'Carol': H_C})

print('Logic puzzle solutions (exactly one liar):')
for sol in solutions:
    liar = next(name for name, honest in sol.items() if not honest)
    print(f'  Alice={sol["Alice"]}, Bob={sol["Bob"]}, Carol={sol["Carol"]} → Liar: {liar}')
if not solutions:
    print('  No solution found — puzzle is inconsistent')
