Prerequisites: ch062 (Piecewise Functions)
You will learn:
Define step functions and Heaviside function
Understand floor, ceiling, and rounding as step functions
Connect step functions to digital signals and threshold logic
Implement step-based quantization
Environment: Python 3.x, numpy, matplotlib
1. Concept¶
A step function (or staircase function) is a piecewise function that is constant on each interval and jumps at a finite set of points.
The most important step function is the Heaviside function: H(x) = { 0 if x < 0; 1 if x ≥ 0 }
Any piecewise constant function can be built from Heaviside shifts: f(x) = Σ (cₖ - cₖ₋₁) · H(x - aₖ)
Related functions:
Floor ⌊x⌋: largest integer ≤ x
Ceiling ⌈x⌉: smallest integer ≥ x
Round: nearest integer
Sign: -1, 0, or 1
Applications:
Quantization in neural networks: float → int representation
Digital signal processing: sampling continuous signals
Threshold classifiers: output class 0 or 1 based on a cutoff
2. Intuition & Mental Models¶
Physical analogy: Light switches. Each switch is at a fixed position; when a threshold is crossed, the state changes. A circuit with many switches is a step function of voltage.
Computational analogy: The comparison operator x > 0 returns 0 or 1 — a step function. Bitwise operations, integer division, and modulo all involve step functions internally.

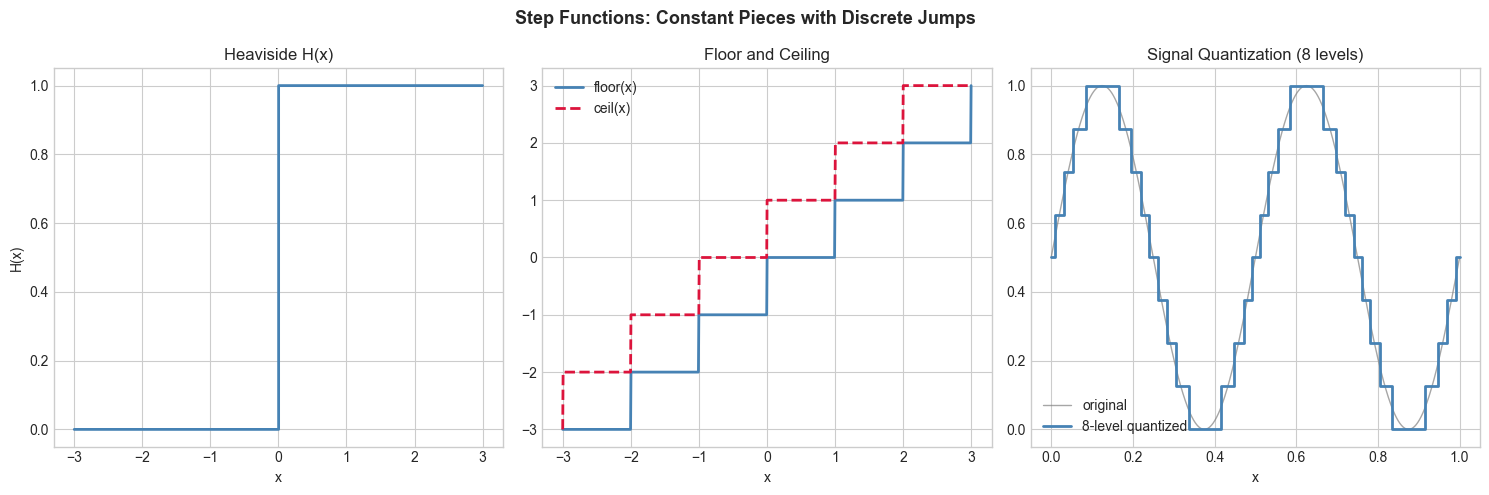

3. Visualization¶
# --- Visualization: Step functions ---
import numpy as np
import matplotlib.pyplot as plt
plt.style.use('seaborn-v0_8-whitegrid')
x = np.linspace(-3, 3, 1000)
fig, axes = plt.subplots(1, 3, figsize=(15, 5))
# Heaviside
h = np.where(x >= 0, 1.0, 0.0)
axes[0].step(x, h, color='steelblue', linewidth=2, where='post')
axes[0].set_title('Heaviside H(x)')
axes[0].set_xlabel('x'); axes[0].set_ylabel('H(x)')
# Floor and ceiling
axes[1].plot(x, np.floor(x), color='steelblue', linewidth=2, label='floor(x)')
axes[1].plot(x, np.ceil(x), color='crimson', linewidth=2, linestyle='--', label='ceil(x)')
axes[1].set_title('Floor and Ceiling')
axes[1].set_xlabel('x'); axes[1].legend()
# Quantization
N_LEVELS = 8 # <-- try changing
x_cont = np.linspace(0, 1, 500)
y_sine = 0.5 * np.sin(4*np.pi*x_cont) + 0.5
y_quant = np.round(y_sine * N_LEVELS) / N_LEVELS
axes[2].plot(x_cont, y_sine, color='gray', linewidth=1, label='original', alpha=0.7)
axes[2].step(x_cont, y_quant, color='steelblue', linewidth=2, label=f'{N_LEVELS}-level quantized', where='post')
axes[2].set_title(f'Signal Quantization ({N_LEVELS} levels)')
axes[2].set_xlabel('x'); axes[2].legend()
plt.suptitle('Step Functions: Constant Pieces with Discrete Jumps', fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()
4. Mathematical Formulation¶
Heaviside function: H(x) = 0 for x<0, 1 for x≥0
Rectangular pulse: Π(x) = H(x) - H(x-1) — selects a window
Floor function: ⌊x⌋ = max{n ∈ ℤ : n ≤ x}
Quantization: q(x) = ⌊x · L⌋ / L maps continuous values to L discrete levels
# --- Implementation: Step function toolkit ---
import numpy as np
def heaviside(x, at_zero=1.0):
"""Heaviside function with configurable value at x=0."""
return np.where(x > 0, 1.0, np.where(x == 0, float(at_zero), 0.0))
def pulse(x, a, b):
"""Rectangular pulse: 1 on [a, b), 0 elsewhere."""
return (heaviside(x - a) - heaviside(x - b)).astype(float)
def quantize(x, n_levels):
"""Uniform quantization to n_levels discrete values in [0, 1]."""
x = np.clip(x, 0, 1)
step = 1.0 / (n_levels - 1)
return np.round(x / step) * step
# Test quantization error
np.random.seed(0)
x_data = np.random.uniform(0, 1, 1000)
for L in [4, 8, 16, 256]:
q = quantize(x_data, L)
mse = np.mean((x_data - q)**2)
print(f" {L:3d} levels: MSE = {mse:.6f}") 4 levels: MSE = 0.008854
8 levels: MSE = 0.001665
16 levels: MSE = 0.000374
256 levels: MSE = 0.000001
6. Experiments¶
Experiment 1: Build a step function approximation to sin(x): at 8 equally spaced x values, sample sin(x) and hold the value constant until the next sample. Compare to the true sin(x) — this is zero-order hold interpolation.
Experiment 2: Quantize an image (numpy 2D array) to 2, 4, 8, 256 levels. At which quantization do images become unrecognizable?
7. Exercises¶
Easy 1. What is ⌊3.7⌋? ⌈-2.3⌉? ⌊-2.7⌋? Verify with np.floor and np.ceil.
Easy 2. Use the Heaviside function to implement relu(x) = max(0, x) as x * H(x).
Medium 1. Write a threshold classifier: given array x, return 1 where x > threshold, 0 otherwise. Apply to a noisy sine wave with threshold = 0.
Medium 2. Implement sample_and_hold(f, n_samples, x_range): sample f at n_samples uniformly spaced points and return a step function that holds each value until the next sample.
Hard. Prove algebraically (or verify numerically) that ⌊x⌋ + ⌊y⌋ ≤ ⌊x+y⌋ ≤ ⌊x⌋ + ⌊y⌋ + 1 for all real x, y. Then show this implies that the floor function is sub-additive.
9. Chapter Summary & Connections¶
Step functions are piecewise constant; jumps occur at discrete points
Heaviside, floor, ceiling, sign, round are the standard step functions
Quantization maps continuous signals to discrete levels — step functions applied to ranges
The derivative of a step function is a spike (Dirac delta) — important in signal processing
Forward connections:
ch064 (Sigmoid) smooths the Heaviside into a continuous approximation
Quantization reappears in neural network compression (post-training quantization)
